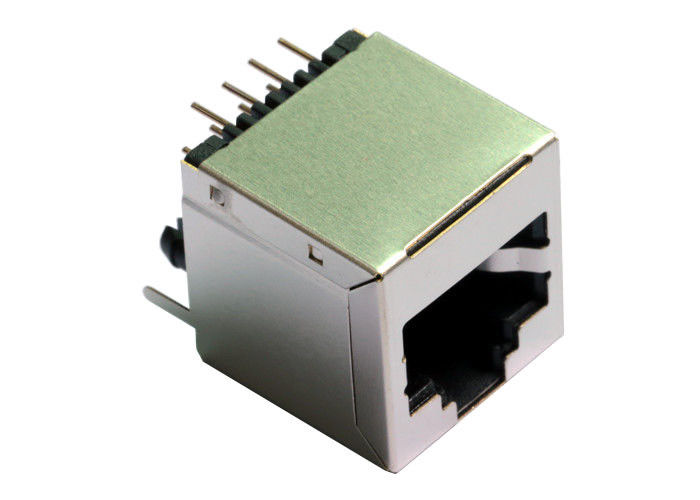

E5288-RG0B44-L Vertical Entry RJ45 Jack Without Magnetic

E5288-RG0B44-L Vertical Entry RJ45 Jack Without Magnetic
E5288-RG0B44-L Vertical Entry RJ45 Jack Without Magnetic

Large Image :  E5288-RG0B44-L Vertical Entry RJ45 Jack Without Magnetic

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: E5288-RG0B44-L

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $0.79↑
Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Detailed Product Description
Part Number: GE523003-LA Termination: Solder
LEDs: Optional Type: DIP / Top Entry
File: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

DIP Vertical Entry RJ45 Jack

,

1X1 Vertical Entry RJ45 Jack

,

E5288-RG0B44-L

E5288-RG0B44-L Vertical Entry RJ45 Jack Without Magnetic GE523003-LA



Description


CONNECTOR TYPE RJ45
CONTACT MATING AREA PLATING GOLD 30 U''
LATCH NOT APPLICABLE
LED OPTION NO LEDS
NUMBER OF PORTS 1X1
PACKAGE THT
PACKAGE HEIGHT MM 16.800
PACKAGE LENGTH MM 16.500
PACKAGE WIDTH MM 16.000
PCB MOUNT ANGLE TOP ENTRY
SPEED CAT 3
DATASHEET
FILES Contact us





























































































Product Description

SMD RJ45 single prot (1x1) Tab-UP without Leds.

designed to support applications, Such as Network Interface Cards(NIC),Lan-on Motherboard (LOM), and PC applications.



Features and Benefits :

PCB jack RJ45 connector 8P8C PCB connector

* Single port (1x1) tab-UP RJ45 with internal magnetics .

* RoHS-6 peak wave solder temperature rating 260 0C.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.



Electrical Performance :

* 350 uH minimum OCL with 8 mA bias current.

* High performance for maximum EMI suppression.

* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.

* Operating temperature range: 0 0C to +70 0C.

* Storage temperature range: -40 0C to +85 0C.



Material Specifications :

8P8C LED light female RJ45 connector with high quality

* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.

* Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.

* PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel

* Housing: Reinforced FR PA66-B30 UL94V-0.

* Metal Shell: Copper Alloy, Nickel Plated

* Case: Phenolic, UL94V-0 Black.

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services
