Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

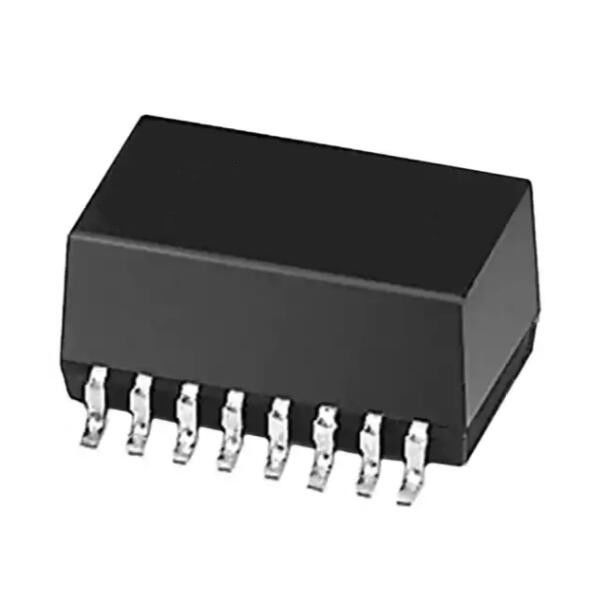

Model Number: 23Z356SMQNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
23Z356SMQNLT |
P/N: |
LPxxxxNL |
Ethernet: |
10Mbps |
Measure: |
5.715x11.56x9.525mm |
Mounting: |
SMD |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
23Z356SMQNLT |
P/N: |
LPxxxxNL |
Ethernet: |
10Mbps |
Measure: |
5.715x11.56x9.525mm |
Mounting: |
SMD |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| APPLICATION-LAN | ETHERNET TRANSFORMER/CHOKE |
| NUMBER OF PORTS | SINGLE |
| PACKAGE | SMT |
| PACKAGE HEIGHT MM | 5.715 |
| PACKAGE LENGTH MM | 11.560 |
| PACKAGE WIDTH MM | 9.525 |
| POE RATING | NON-POE |
| SPEED | 10BASE-T |
| TEMPERATURE | 0 TO 70 |
1. Turns Ratio50KHz, 0.5VElectrical Specifications(25):
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
1100 staff,
100% test
Flexible delivery time
Free Samples
We can cross the other part number:
| H0068ANLT | H0056NLT | H0019NLT | HX6510FNL | HX6510FNLT |
| H6080NL | H6080NLT | H1183 | 23Z91SMFNL | 23Z91SMFNLT |
| H1112NL | H1112NLT | H1199 | 23Z91SMNL | 23Z91SMNLT |
| H1126NL | H1126NLT | HX1188 | 23Z105SMFNL | 23Z105SMFNLT |
| H5019NL | H5019NLT | HX1198 | 23Z105SMNL | 23Z105SMNLT |
| H5019BNL | H5019BNLT | H1302 | 23Z356SMFNL | 23Z356SMFNLT |
| HX5019BNL | HX5019BNLT | H2305FNL | 23Z356SMQNL | 23Z356SMQNLT |
| HX5180NL | HX5180NLT | H2354FNL | 23Z467SMFNL | 23Z467SMFNLT |
| H7019NL | H7019NLT | H5004EFNL | 23Z467SMNL | 23Z467SMNLT |
| H7028NL | H7028NLT | H5004ENL | E2023FNL | E2023FNLT |
| H7029NL | H7029NLT | H5007EFNL | E2023NL | E2023NLT |
| HX7028NL | HX7028NLT | H2354FNLT | E2032FNL | E2032FNLT |
| H7800NL | H7800NLT | H5004EFNLT | E2081FNL | E2081FNLT |
