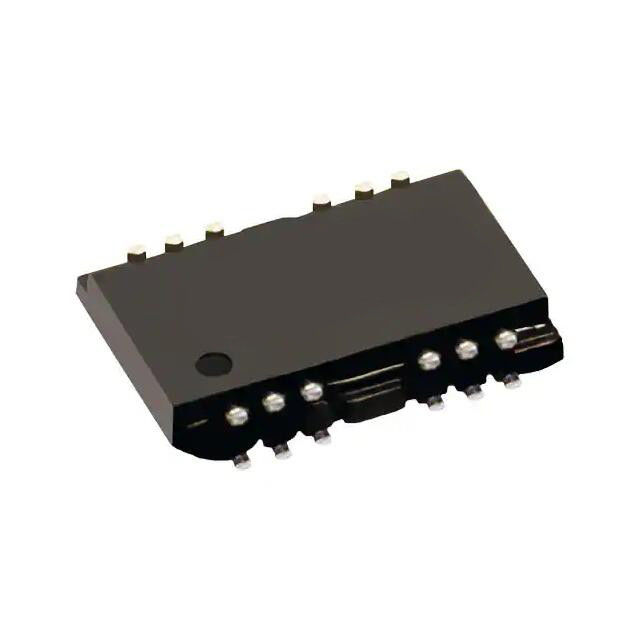

H0068ANL / H0068ANLT LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter

H0068ANL / H0068ANLT LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter
H0068ANL / H0068ANLT LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter

Large Image :  H0068ANL / H0068ANLT LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H0068ANL / H0068ANLT
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
Specifications: H0068ANL / H0068ANLT Application: FE Transformer
Turn Ratio: 1:1 Pins: 16
Hipot: 1500V Cross PN: LP41606NL
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

100BASE-TX Single Ethernet Transformer

,

1CT/1CT Ethernet Isolation Transformer

,

10/100Base-T Lan Magnetic Transformers

H0068ANL / H0068ANLT LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter

Manufacturer Pulse Electronics Network
Series -
Part Status Active
Transformer Type LAN 10/100 Base-T
Inductance -
ET (Volt-Time) -
Turns Ratio - Primary:Secondary 1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.347" W (12.70mm x 8.81mm)
Height - Seated (Max) 0.082" (2.08mm)
Operating Temperature 0°C ~ 70°C



Electrical Specifications @ 25°C


1.Turns Ratio(%%P5%):
  TX=1CT∶1CT        RX=1CT∶1CT
2.OCL:350uH MIN  @100KHz/0.1V
3.Insertion Loss:
  0.3-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
  30MHz:-20      60MHz:-14
  80MHz:-11.5
5.Crosstalk(dB TYP):
  30MHz:-45      60MHz:-40
  100MHz:-35
6.CMR(dB TYP):
  30MHz:-42      50MHz:-37
  100MHz:-33
7.Hipot: 1500Vrms/0.5mA/60Sec.
8.Operating Temperature: 0℃~70℃/-40℃~+85℃


20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter
0875-1G2T-E3 C855-2B4R-54 08B1-1X4T-36-F 0879-2C6R-54
13F-2010CNL 7490101120 0833-2X1T-33-F C850-2G6R-54
0826-1X4T-43-F 0810-2H6R-28-F 0811-2X4R-28-F 0854-2X8R-GK-F
L826-1X4T-23-F 20PT1024X LF 7490101120 0895-2X6R-GK
13F-2010CNL S553-6500-D8 S560-6600-GG S553-6500-43
7490101120 7490101120 LP41606NL    S553-6500-44
S553-1084-01 S553-6500-E2 S560-6600-GK 13F-2010CNL
S553-1084-11 S553-6500-E3 S560-6600-GM S553-6500-55
S553-1506-AE S553-6500-E4 S560-6600-GV S553-6500-58
13F-2010CNL S553-6500-E5 7490101120 7490101120



NOTES:
      1.Designed to support application,such as SOHO(ADSL
        modems),LAN-on-Motherboard(LOM),hub and Switches.
      2.With various Turns Ratios.
      3.RoHS "NL" peak solder rating 260%%P5℃.
