H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer
H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

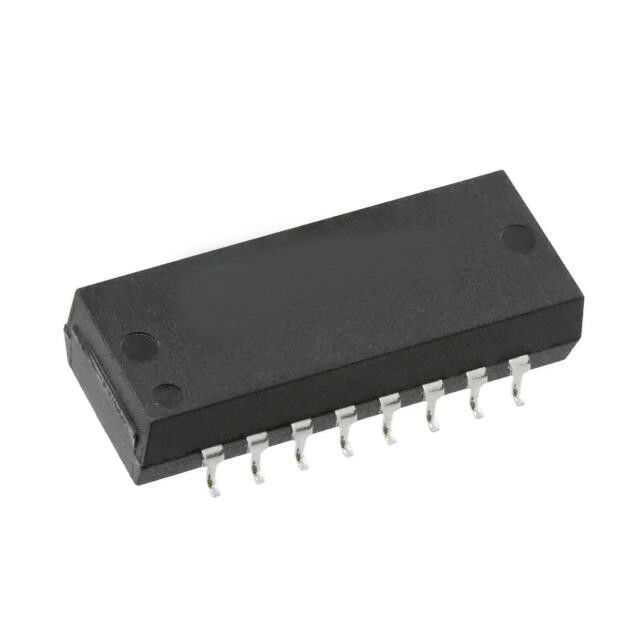

Large Image :  H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1012NL / H1012NLT
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
PN#: H1012NL / H1012NLT Interface: 10 Mbps
Samples: Available Package: SMD
Temperature: 0℃ TO +70℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

100BASE-TX Single Ethernet Transformer

,

1CT/1CT Ethernet Isolation Transformer

,

10/100Base-T Lan Magnetic Transformers

HS12703 10/100Base-T Ethernet Single Port Transformer Surface Mounting



Part Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance -
ET (Volt-Time) -
Turns Ratio - Primary:Secondary 1CT:1CT
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Max) 0.245" (6.22mm)
Operating Temperature 0°C ~ 70°C
Weight 0.11 oz (3.13 g)
Electrical Specifications @25℃
1.Turns Ratio:
  TX=1CT:1CT     RX=1CT:1CT
2.OCL(100KHz/0.1Vrms):
  350uH Min
3.Insertion Loss:
  0.3-100MHz: -1.0dB Max
4.Return Loss:
  30MHz: -18dB Min
  60MHz: -16dB Min
  100MHz:-12dB Min
5.CMRR:
  30MHz: -45dB Min
  50MHz: -40dB Min
  100MHz:-35dB Min
6.Hi-Pot:1500Vrms Min
7.Operating Temperature: 0℃~70℃.
