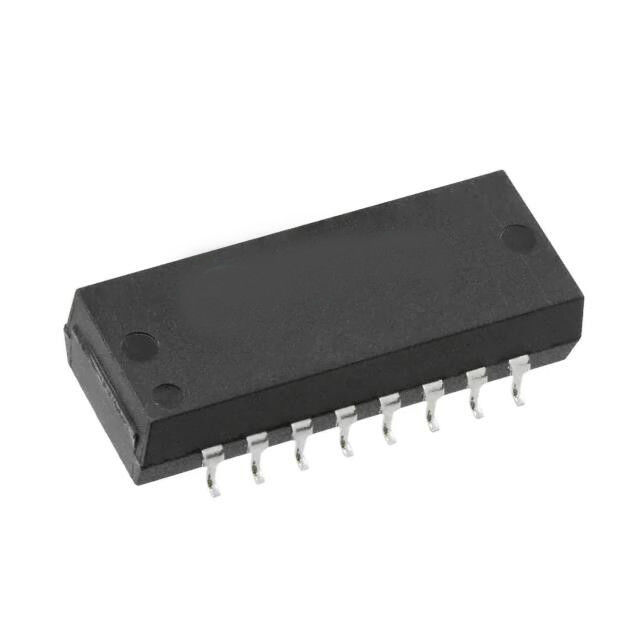

H1086NL / H1086NLT Isolation and Data Interface Transformer 1:1 Surface Mount

H1086NL / H1086NLT Isolation and Data Interface Transformer 1:1 Surface Mount
H1086NL / H1086NLT Isolation and Data Interface Transformer 1:1 Surface Mount

Large Image :  H1086NL / H1086NLT Isolation and Data Interface Transformer 1:1 Surface Mount

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1086NL / H1086NLT
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
High Light:

100BASE-TX Single Ethernet Transformer

,

1CT/1CT Ethernet Isolation Transformer

,

10/100Base-T Lan Magnetic Transformers

H1086NL / H1086NLT Isolation and Data Interface Transformer 1:1 Surface Mount

Quick Details

1.Single Port Lan Transformer

2.ColiStructure: Toroidal

3.10base-t transformer

4.SMD, 16 pins


10  BASE-TX Single Port Lan Transformer With 16 Pins




Description:



Part Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance -
ET (Volt-Time) -
Turns Ratio - Primary:Secondary 1:1
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Max) 0.245" (6.22mm)
Operating Temperature 0°C ~ 70°C
Weight 0.11 oz (3.13 g)


Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min





Applications:



Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time
