Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

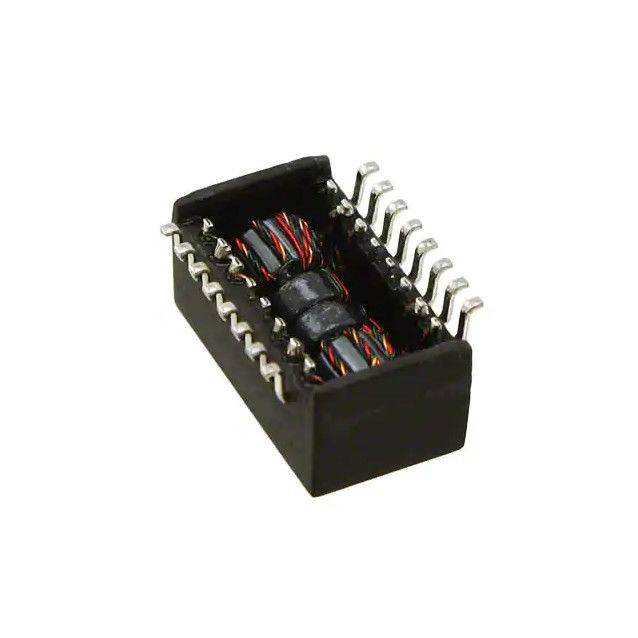

Model Number: H1199NL / H1199NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
H1199NL / H1199NLT |
Ethernet: |
10/100Mbps X1 |
Mounting: |
SMD |
Number Of Ports: |
Single |
Temperature: |
0℃ TO 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
H1199NL / H1199NLT |
Ethernet: |
10/100Mbps X1 |
Mounting: |
SMD |
Number Of Ports: |
Single |
Temperature: |
0℃ TO 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:
| Part Status | Active | |
|---|---|---|
| Transformer Type | Isolation and Data Interface (Encapsulated) | |
| Inductance | - | |
| ET (Volt-Time) | - | |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.500" L x 0.280" W (12.70mm x 7.11mm) | |
| Height - Seated (Max) | 0.245" (6.22mm) | |
| Operating Temperature | 0°C ~ 70°C | |
| Weight | 0.03 oz (0.85 g) |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
• Provide New Design For Customer Requirements
• Delivery Time:2-3 Weeks After Orders
Packing
1.Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2.We can do the packing according to the customer's requirement, but the price is different.
Shipping:
By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent , you can contact with our sales to get the cheapest freight cost
