Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1260NL H1260NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN: |
H1260NL / H1260NLT |
Data Rate: |
100BASE-TX |
Free Samples: |
Available |
Package: |
16-pin SMD |
Temperature: |
0℃ TO +70℃ |
RoHS Compliant: |
YES |
Isolation Voltage: |
1500 VAC |
Turns Ratio: |
1CT:1CT |
PN: |
H1260NL / H1260NLT |
Data Rate: |
100BASE-TX |
Free Samples: |
Available |
Package: |
16-pin SMD |
Temperature: |
0℃ TO +70℃ |
RoHS Compliant: |
YES |
Isolation Voltage: |
1500 VAC |
Turns Ratio: |
1CT:1CT |
| Parameter | Specification |
|---|---|
| Part Number | H1260NL / H1260NLT |
| Device Type | SMT LAN Transformer |
| Ethernet Standard | 100BASE-TX |
| Turns Ratio | 1CT:1CT / 1:1 |
| Number of Channels | Single |
| Mounting Style | SMD |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -20°C to +125°C |
| Isolation Voltage | 1500 VAC / 1500 VRMS |
| RoHS | Yes |
| Parameter | Specification |
|---|---|
| Turns Ratio | 1:1 ±2% |
| Insertion Loss | 100 kHz: -1.2 dB max1–125 MHz: -0.2 − 0.002·f^1.4 dB max |
| Return Loss, 100BT (Zout = 100 Ω ±15%) | 0.1–30 MHz: -16 dB min30–60 MHz: -10 + 20·log10(f/60 MHz) dB min60–80 MHz: -10 dB min |
| Inductance (OCL) | 350 µH min |
| Crosstalk, Adjacent Channels | 1 MHz: -50 dB min10–100 MHz: -55 + 22·log10(f/10) dB min |
| Common Mode Rejection Ratio | 2 MHz: -50 dB min30–200 MHz: -15 + 20·log10(f/200) dB min |
| DC Resistance, 1/2 Winding | 0.65 Ω max |
| DC Resistance Imbalance | ±0.065 Ω max |
| Input-Output Isolation | 1500 VRMS min @ 60 seconds |

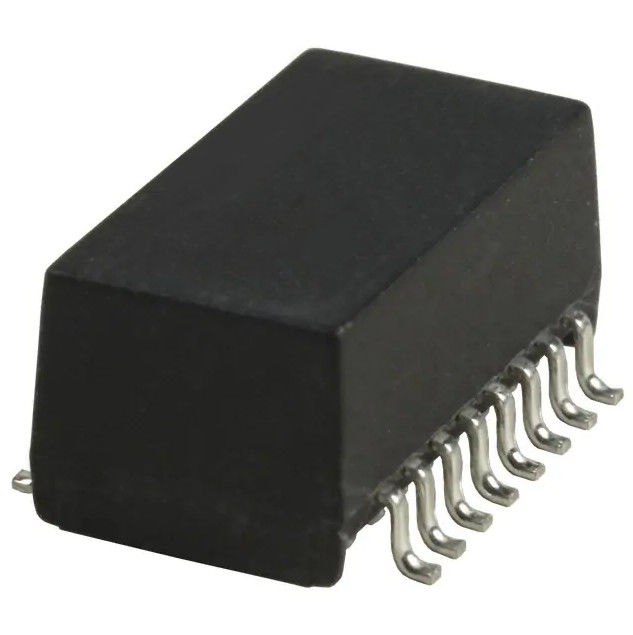

If you need a compact SMT LAN transformer for 100BASE-TX Ethernet, the H1260NL / H1260NLT offers a practical combination of 1:1 coupling, 1500 VRMS isolation, RoHS compliance, and tape-and-reel availability. It is a solid fit for Ethernet hardware that needs dependable signal integrity and streamlined surface-mount production.
Yes. H1260NLT is the tape-and-reel packaging version of H1260NL; the datasheet states that adding the “T” suffix indicates tape & reel packaging.
The datasheet specifies 100BASE-TX support.
The datasheet lists 1500 VRMS minimum for 60 seconds and also identifies the isolation voltage as 1500 VAC.
Yes. The part is specified as an SMD / SMT device.
