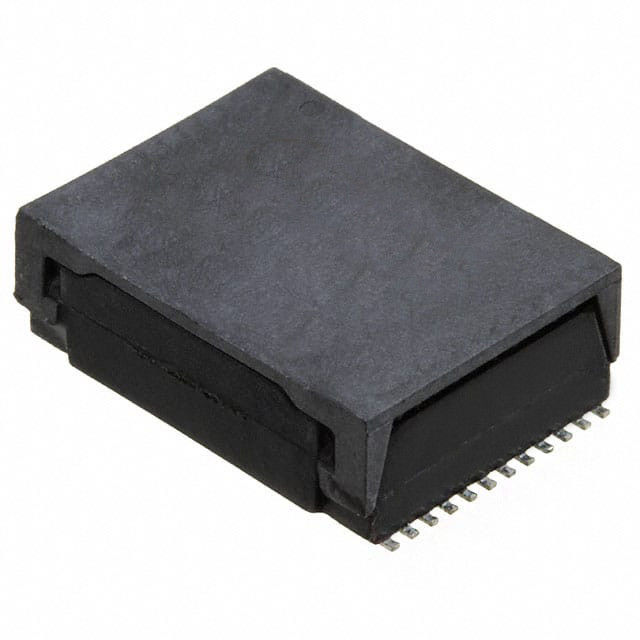

24 Pin 100Mbps 100Base-T SMT Transformer H2009FNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H2009FNL / H2009FNLT

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100Base-T SMT Transformer

,

100Mbps SMT Transformer

,

24 Pin Dual Port Transformer

P/N:
H2009FNL / H2009FNLT
Ethernet:
2 Port 100Mbps
Mounting:
SMT
Pin:
24
Application:
NAS/ STB/ Wireless Products
P/N:
H2009FNL / H2009FNLT
Ethernet:
2 Port 100Mbps
Mounting:
SMT
Pin:
24
Application:
NAS/ STB/ Wireless Products
24 Pin 100Mbps 100Base-T SMT Transformer H2009FNL
H2009FNL / H2009FNLT 100 Base-T Dual Port SMT Transformer





Part Status
Active
Transformer Type
LAN 10G Base-T
Inductance
350µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type
Surface Mount
Size / Dimension
0.518" L x 0.703" W (13.16mm x 17.86mm)
Height - Seated (Max)
0.241" (6.12mm)
Operating Temperature
0°C ~ 70°C
