Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

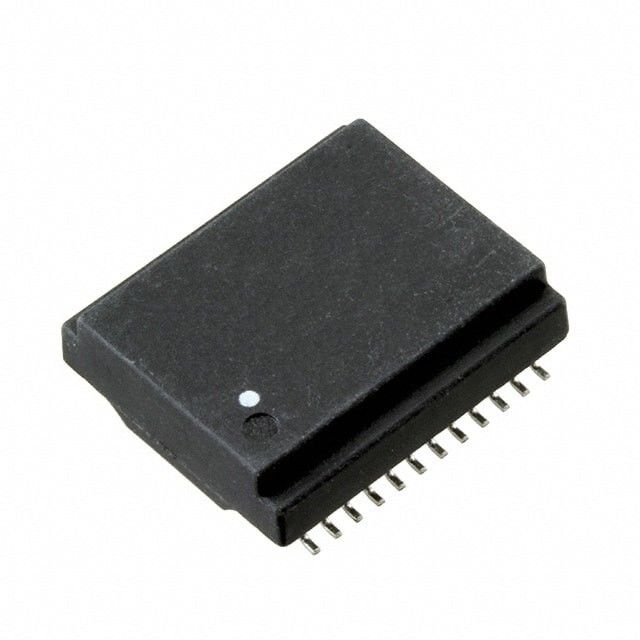

Model Number: H5007EFNL / H5007EFNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
H5007EFNL / H5007EFNLT |
Ethernet: |
1000Mbps X1 |
Mounting: |
SMD |
Number Of Ports: |
Single |
Temperature: |
0℃ TO 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
H5007EFNL / H5007EFNLT |
Ethernet: |
1000Mbps X1 |
Mounting: |
SMD |
Number Of Ports: |
Single |
Temperature: |
0℃ TO 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:
Part Status
|
Active
|
Transformer Type
|
LAN 10/100/1000 Base-T
|
Inductance
|
350µH
|
ET (Volt-Time)
|
-
|
Turns Ratio - Primary:Secondary
|
1CT:1CT Transmitter, 1CT:1CT Receiver
|
Mounting Type
|
Surface Mount
|
Size / Dimension
|
0.689" L x 0.600" W (17.50mm x 15.24mm)
|
Height - Seated (Max)
|
0.225" (5.72mm)
|
Operating Temperature
|
0°C ~ 70°C
|
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Packing
1.Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2.We can do the packing according to the customer's requirement, but the price is different.
Shipping:
By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent , you can contact with our sales to get the cheapest freight cost
Product Lines
Now has 22 production lines, using IE technology to analyze the process statistics, continuously improve the production process and technology, improve production efficiency.
