Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

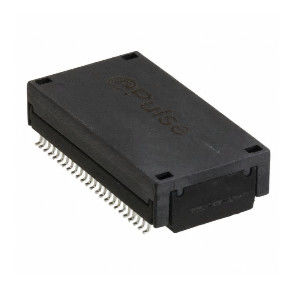

Model Number: H5012FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$1.2
Packaging Details: Tape & Reel, Tube
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
H5012FNL / H5012FNLT |
No. Of Channels/Ports: |
Dual |
Data Rate: |
1000BASE-T |
Isolation Voltage: |
1500 VAC |
Turns Ratio: |
1CT:1CT |
Key Resources:: |
Datasheet, STEP/CAD, EDA/MCAD |
Part Number: |
H5012FNL / H5012FNLT |
No. Of Channels/Ports: |
Dual |
Data Rate: |
1000BASE-T |
Isolation Voltage: |
1500 VAC |
Turns Ratio: |
1CT:1CT |
Key Resources:: |
Datasheet, STEP/CAD, EDA/MCAD |
|
Part Number |
H5012FNL /H5012FNLT |
|
Product Category |
Pulse Transformer |
|
Transformer Type |
LAN 10/100/1000 Base-T |
|
Inductance |
350µH |
|
Turns Ratio |
1CT:1CT (Tx), 1CT:1CT (Rx) |
|
Mounting Type |
Surface Mount |
|
Dimensions |
1.095" L x 0.590" W (27.81mm x 14.99mm) |
|
Height |
0.285" (7.24mm) |
|
Operating Temperature |
0°C ~ 70°C |
|
Packaging |
Tube Tape & Reel (TR) |
1000BASE‑T Ethernet magnetics are essential components in gigabit network systems, providing electrical isolation, signal conditioning, and EMI suppression. These Ethernet transformers are widely used in the following applications:
