Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

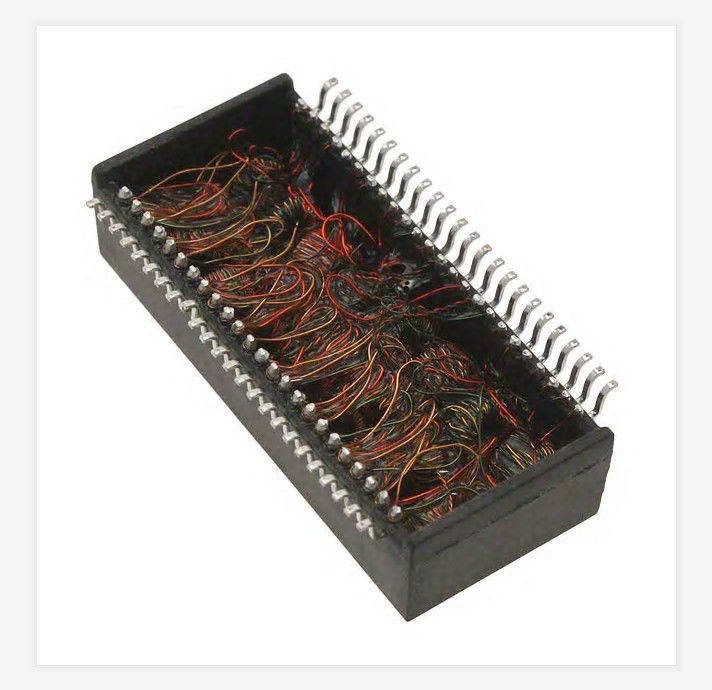

Model Number: H5014NL / H5014NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
H5014NL / H5014NLT |
Applications: |
1000Base-T |
Family: |
Gigabit Magnetics |
Mounting: |
SMD |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
H5014NL / H5014NLT |
Applications: |
1000Base-T |
Family: |
Gigabit Magnetics |
Mounting: |
SMD |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:
|
Part Status
|
Active
|
|
Transformer Type
|
Isolation and Data Interface (Encapsulated)
|
|
Inductance
|
-
|
|
ET (Volt-Time)
|
-
|
|
Turns Ratio - Primary:Secondary
|
1CT:1CT
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
1.095" L x 0.480" W (27.81mm x 12.19mm)
|
|
Height - Seated (Max)
|
0.295" (7.49mm)
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Weight
|
0.06 oz (1.71 g)
|
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
