Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

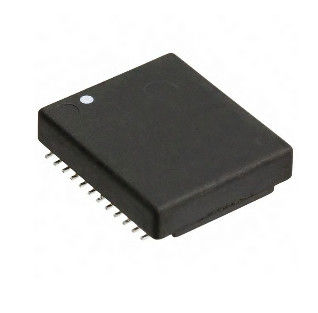

Model Number: H5015FNL / H5015FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H5015FNL / H5015FNLT |
Speed: |
1000 BASE-T |
Number Of Ports: |
Single |
Application: |
ETHERNET (NoN PoE) |
Package: |
SMD |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H5015FNL / H5015FNLT |
Speed: |
1000 BASE-T |
Number Of Ports: |
Single |
Application: |
ETHERNET (NoN PoE) |
Package: |
SMD |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
Part Status
|
Active
|
|
Transformer Type
|
LAN 10/100/1000 Base-T
|
|
Inductance
|
350µH
|
|
ET (Volt-Time)
|
-
|
|
Turns Ratio - Primary:Secondary
|
1CT:1CT Transmitter, 1CT:1CT Receiver
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
0.695" L x 0.596" W (17.66mm x 15.14mm)
|
|
Height - Seated (Max)
|
0.180" (4.57mm)
|
|
Operating Temperature
|
0°C ~ 70°C
|
Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
