Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG10G-E12NZ5LF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
P / N: |
TG10G-E12NZ5LF |
Pin: |
24 |
Application: |
HUB, PC Card, Switch, Router Etc |
Sample: |
Available |
Color: |
Black |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
P / N: |
TG10G-E12NZ5LF |
Pin: |
24 |
Application: |
HUB, PC Card, Switch, Router Etc |
Sample: |
Available |
Color: |
Black |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Description :

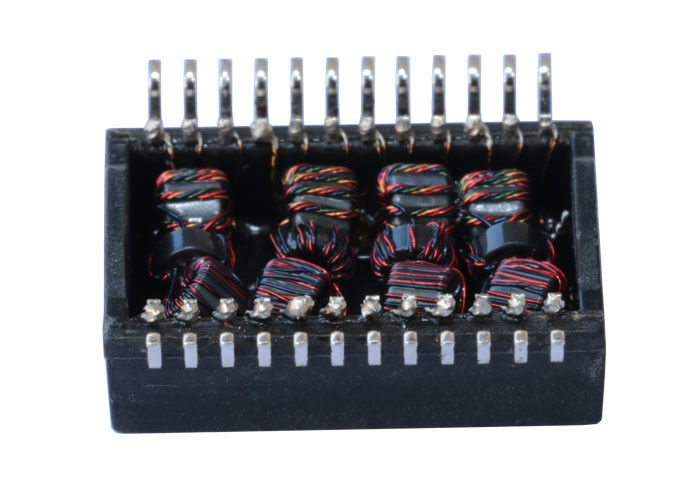

| Single Port, 10G Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | LP72423ANL |
| Part Number | TG10G-E12NZ5LF |
| Speed | 10G BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Package Height (Inches) | 0.244 |
| Package Height (mm) | 6.20 |
| Package Length (Inches) | 0.715 |
| Package Length (mm) | 18.15 |
| Package Width (Inches) | 0.630 |
| Package Width (mm) | 16.00 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Professional Certification:
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
FAQ
Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 1000pcs, but special requirements can be accepted.
Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.
Q: What is the lead time?(How long do you need me to prepare my goods?
A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)
Q: How will you deliver goods to me?
A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
