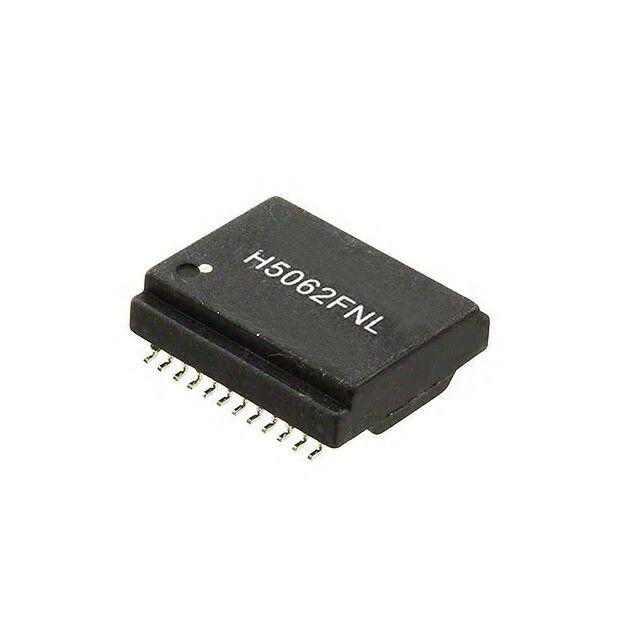

Model Number: H5062FNL / H5062FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Pulse PN: |
H5062FNL / H5062FNLT |
Made In China: |
LPxxxxNL |
Mounting: |
SMD |
Pins: |
24 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Pulse PN: |
H5062FNL / H5062FNLT |
Made In China: |
LPxxxxNL |
Mounting: |
SMD |
Pins: |
24 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
Part Status
|
Active
|
|
Transformer Type
|
LAN 10/100/1000Base-T
|
|
Inductance
|
350µH
|
|
ET (Volt-Time)
|
-
|
|
Turns Ratio - Primary:Secondary
|
1CT:1CT Transmitter, 1CT:1CT Receiver
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
0.689" L x 0.600" W (17.50mm x 15.24mm)
|
|
Height - Seated (Max)
|
0.225" (5.72mm)
|
|
Operating Temperature
|
0°C ~ 70°C
|
Electrical Specifications @25℃
1.ISOLATION:1500 Vrms
2.INSERTION LOSS:
-1.1dB MAX @1MHz-100MHz
3.RETURN LOSS:
-16dB Min @1-30MHz
-14dB Min @40MHz
-13dB Min @50MHz
-12dB Typ @60-80MHz
4.Differential to Common Mode Rejection:
-43dB Min @30MHz
-37dB Min @60MHz
-33dB Min @100MHz
5.Crosstalk:
-43dB Min @30MHz
-37dB Min @60MHz
-33dB Min @100MHz
Professional Certifications:
• ISO 9001:2008
• ISO 14001:2004
• UL / REACH
• RoHS Directive-compliant
• Active environment policy
100% Guarantee Quality:
• Manufactured under strict controls
• 100% tested (not just batch tested)
• LINK-PP is OEM of TE (Tyco) for 9 years
• Quality guarantee: 3 years
• Successful customer: Texas instruments Samsung Cisco Siemens and Intel
• LINK-PP is the preferred supplier of TI (Texas instruments)
Competitive Price And Services:
• Delivery time: 10-25 Days after orders
• Free samples are available
• Provide new design for customer requirements
• 90% off shipping cost by DHL UPS FedEx or TNT
