Model Number: H5084NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$2.2
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Model: |
H5084NL / H5084NLT |
Data Rate: |
1000 BASE-T |
Category: |
1-Port Gigabit Ethernet Magnetics |
Mounting Type: |
SMT |
Temperature Range: |
0 To + 70℃ |
Standards: |
IEEE 802.3 |
Isolation Voltage: |
1500V AC |
Turns Ratio: |
1CT:1CT |
Model: |
H5084NL / H5084NLT |
Data Rate: |
1000 BASE-T |
Category: |
1-Port Gigabit Ethernet Magnetics |
Mounting Type: |
SMT |
Temperature Range: |
0 To + 70℃ |
Standards: |
IEEE 802.3 |
Isolation Voltage: |
1500V AC |
Turns Ratio: |
1CT:1CT |

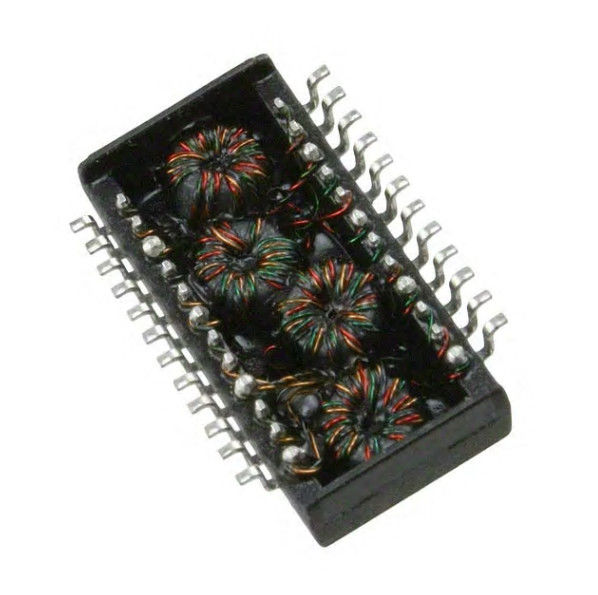

The Pulse H5084NL is a Gigabit Ethernet LAN transformer module designed for 1000Base-T single-port applications.
It provides signal isolation, impedance matching, and noise suppression for high-speed Ethernet interfaces that comply with the IEEE 802.3 standards.
This compact surface-mount magnetic component is widely used in network switches, routers, industrial Ethernet equipment, and embedded systems where compact PCB design and high signal integrity are required.
| Parameter | Value / Description |
|---|---|
| Part Number | H5084NL/H5084NLT |
| Application | 1000Base-T Gigabit Ethernet |
| Turns Ratio | 1CT:1CT (center-tapped on both sides) |
| Inductance | 350 µH |
| Frequency Range | 1 MHz – 100 MHz |
| Isolation Voltage | 1500 Vrms |
| Package Type | Surface Mount (SMT) |
| Dimensions (L × W × H) | 15.24 mm × 7.62 mm × 4.14 mm |
| Operating Temperature | 0 °C – 70 °C |
| Compliance | IEEE 802.3 1000Base-T compatible |
