Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5149NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.6-$3.0
Packaging Details: T&R
Delivery Time: About 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
H5149NL / H5149NLT |
Ethernet: |
LAN 10/100/1000 Base-T |
Pin To Pin: |
LP82453NL |
Pins: |
24 |
Free Samples: |
Available 1~3 PCS |
Temperature: |
0 ℃ - 70 ℃ |
No. Of Channels/Ports: |
1 |
Isolation Voltage: |
1500 VAC |
Item: |
H5149NL / H5149NLT |
Ethernet: |
LAN 10/100/1000 Base-T |
Pin To Pin: |
LP82453NL |
Pins: |
24 |
Free Samples: |
Available 1~3 PCS |
Temperature: |
0 ℃ - 70 ℃ |
No. Of Channels/Ports: |
1 |
Isolation Voltage: |
1500 VAC |

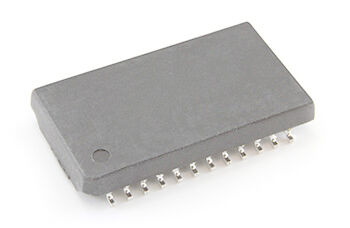

| Part Number | H5149NL / H5149NLT |
| Product Category | Pulse Transformers |
| Transformer Type | LAN 10/100/1000 Base-T |
| Data Rate | 1000BASE-T |
| Turns Ratio | 1CT:1CT (Transmit), 1CT:1CT (Receive) |
| Hipot | 1500 Vrms MIN |
| Inductance | 350 uH |
| Number of Channels/Ports | Single |
| Mounting Type | Surface Mount |
| Mounting Style | PCMCIA |
| Dimensions | Approximately 17.80mm x 9.91mm |
| Thickness | 3.20mm Max |
| Operating Temperature Range | 0°C to +70°C |
| Moisture Sensitivity Level | 1 |
| RoHS Compliant | Yes |
