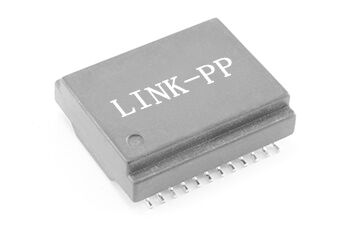

Model Number: H6072FNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
H6072FNL / H6072FNLT |
Ethernet: |
1000 Base-T |
Pins: |
24 |
Files: |
Datasheet / 3D |
Free Samples: |
Available |
Port: |
Single |
Isolation Voltage: |
1500V AC |
Turns Ratio: |
1CT:1CT |
Item: |
H6072FNL / H6072FNLT |
Ethernet: |
1000 Base-T |
Pins: |
24 |
Files: |
Datasheet / 3D |
Free Samples: |
Available |
Port: |
Single |
Isolation Voltage: |
1500V AC |
Turns Ratio: |
1CT:1CT |
| General Specifications: | |
|
APPLICATION-LAN |
ETHERNET TRANSFORMER/CHOKE |
| PART NUMBER | H6072FNL / H6072FNLT |
|
NUMBER OF PORTS |
SINGLE |
|
MOUNTING STYLE |
SMT |
|
PACKAGE HEIGHT MM |
5.715 |
|
PACKAGE LENGTH MM |
17.50 |
|
PACKAGE WIDTH MM |
15.24 |
|
SPEED |
1000BASE-T |
|
OPERATING TEMPERATURE |
0 TO 70 |
| COMPLIANCE | RoHS compliant, IEEE 802.3 Specifications |
| PACKAGING | Tape & Reel |
| Electrical Characteristics (at 25°C): | |
| Turns Ratio | 1:1 ±2% |
| Insertion Loss (1-125 MHz) | -1.2 dB MAX |
| Return Loss (1-40 MHz) | -16 dB MIN |
| Return Loss (40-100 MHz) | -10+20*LOG10(f/80MHz) dB MIN |
| Crosstalk (Adjacent Channels) | -40 dB MIN (1-100 MHz) |
| Common Mode Rejection Ratio (CMRR) | -30 dB MIN (1-100 MHz) |
| Inductance (OCL) with 8mA DC Bias | 350µH minimum |
| Physical and Material Specifications: | |
| Header | DAP (Diallyl Phthalate) with UL 94V-0 flammability rating |
| Storage Temperature | -20°C to +125°C |
| Solderability | Compliant with J-STD-002 at 245°C reflow profile. |
| Moisture Sensitivity | Level 1, no moisture sensitivity |
| RoHS | Yes |
