Name: 10/100BASE-T 1500Vrms SMD Lan Transformer Modules H1601CG
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: H1601CG
Price: 1.06 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H1601CG

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    100BASE-T SMD LAN Transformer, 1500Vrms LAN Transformer, H1601CG Transformer


P/N:	H1601CG	Familiy:	10/100 Base-T Magnetics
Number Of Ports:	Single Port	PoE:	Non-PoE
Hi-pot:	1500Vrms	OCL:	350uh Min

P/N:	H1601CG
Familiy:	10/100 Base-T Magnetics
Number Of Ports:	Single Port
PoE:	Non-PoE
Hi-pot:	1500Vrms
OCL:	350uh Min

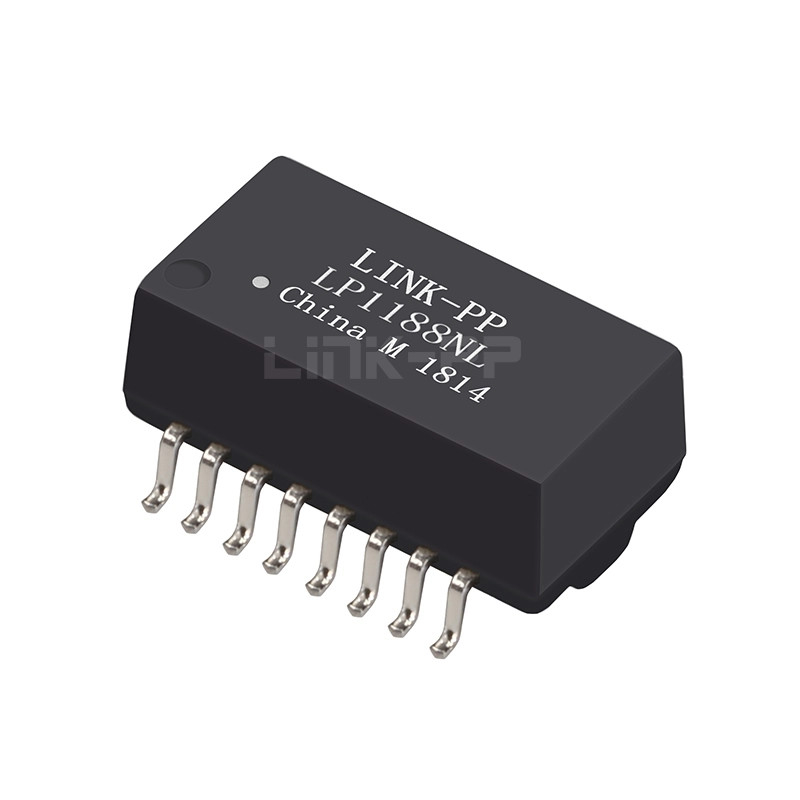

10/100BASE-T 1500Vrms SMD Lan Transformer Modules H1601CG

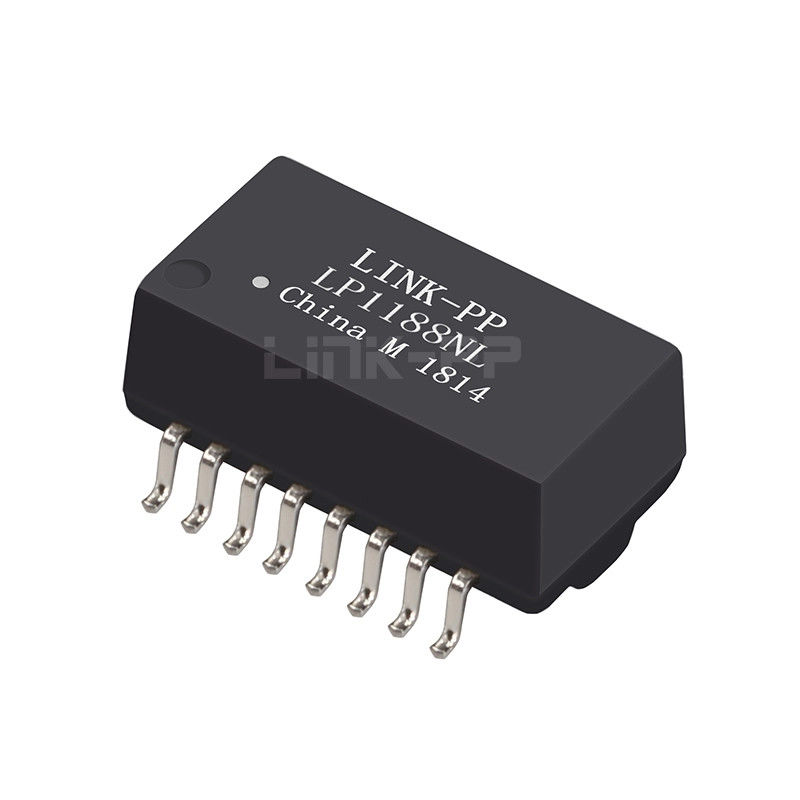

H1601CG LAN Transformer Single Port 10/100 BASE-T Magnetics

Detailed Information:

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD, Rohs
LINK-PP Part Number	LP1188NL
Original Part Number	H1601CG
Speed	10/100BASE-T
Number of Ports	SINGLE
Application - LAN	ETHERNET (NON-PoE)
Package	SMD
Operating Temperature Range	0℃ TO 70℃
Storage Temperature Range	-25℃ to +125℃
AutomDX	YES
Mounting Type	Surface Mount
Construction	OPEN FRAME
Cores Per Port	4
Package Height (Inches)	0.201
Package Height (mm)	5.10
Package Length (Inches)	0.504
Package Length (mm)	12.8
Package Width (Inches)	0.366
Package Width (mm)	9.30
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT
Packaging	Tape & Reel (TR)
Requirement	IEEE802.3

H1601CG Schematic:

H1601CG Transformer Module Applications:

Network Communication: used in switches, routers, network cards, and other devices to achieve high-speed and stable network connection.
Consumer Electronics: supports smart home devices, TV boxes, media players, etc.
3C Appliances: used in computers, communications, and consumer electronics products to improve the network performance of devices.
Security Monitoring: used in security equipment such as cameras, NVRs, DVRs, etc. to ensure stable video data transmission.
Industrial Automation: used in PLC, HMI, industrial Ethernet, and other equipment to ensure reliable communication in industrial environments.
Automotive Communication: used in vehicle network communication equipment to support the intelligent interconnection function of vehicles.
Medical: used in medical devices to ensure accurate data transmission and stable operation of equipment.
Aviation and Military: communication equipment suitable for aviation and military fields.
