Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1631CG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
H1631CG |
Familiy: |
10/100 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
H1631CG |
Familiy: |
10/100 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

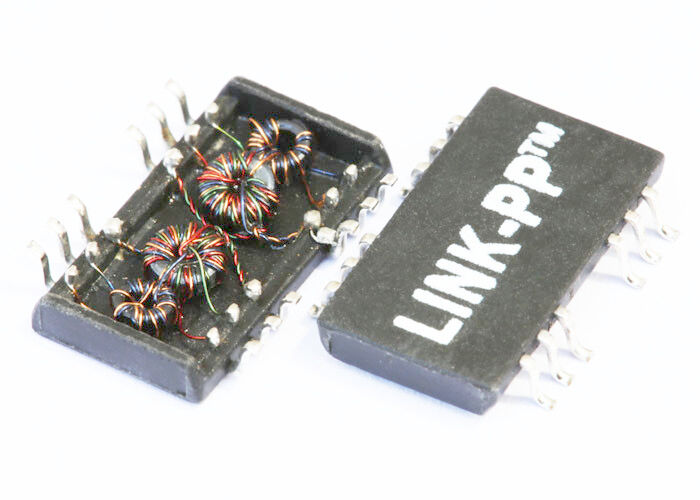

| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | - |
| Part Number | H1631CG |
| Speed | 10/100BASE-T |
| Number of Ports | Single |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Package Height (Inches) | - |
| Package Height (mm) | 2.5 |
| Package Length (Inches) | - |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | - |
| Package Width (mm) | 7.10 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Competitive Price And Service
• Provide New Design For Customer Requirements
• Delivery Time:2-3 Weeks After Orders
Packing
1.Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2.We can do the packing according to the customer's requirement, but the price is different.
