Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: G2497CG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
G2497CG / G2405CG |
Familiy: |
Gigabit Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
G2497CG / G2405CG |
Familiy: |
Gigabit Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

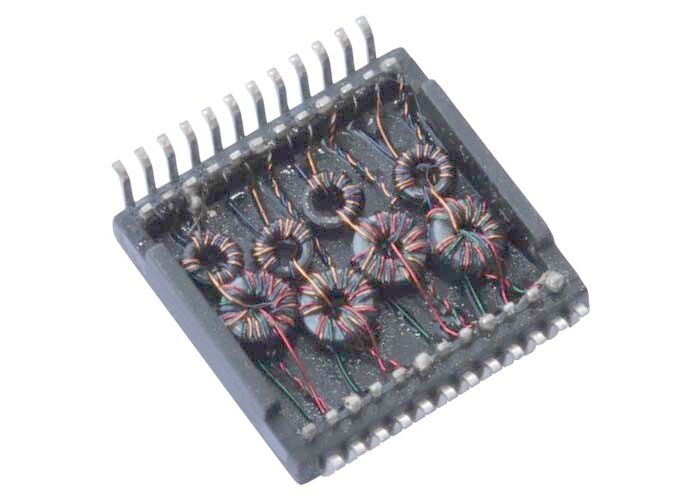

| Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD, RoHS | |
| LINK-PP Part Number | - |
| Part Number | G2497CG / G2405CG |
| Speed | 1000BASE-T |
| Number of Ports | Single |
| Application - LAN | ETHERNET(Non PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Package Height (mm) | 6.80 |
| Package Length (mm) | 18.13 |
| Package Width (mm) | 12.20 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
> ISO9001:2008 Quality management system
> ISO14001:2004 Environmental management system
> RoHS Environmental protection certification
> CE certification
> FCC certification
1. Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2. We can do the packing according to the customer's requirement, but the price is different.
1. What is the data rate supported by the G2497CG / G2405CG LAN transformer?
The transformer supports 1000BASE-T (Gigabit Ethernet) applications, ensuring reliable high-speed data transmission.
2. How many ports does this LAN transformer have?
This product features a single port, suitable for individual Ethernet connections.
3. Can this transformer be used in PoE applications?
No, this transformer is designed for standard Ethernet applications and does not support Power over Ethernet (PoE).
4. What are the operating temperature ranges?
The transformer operates reliably in temperatures from 0°C to 70°C.
5. What type of packaging does this product use?
It comes in an SMD (Surface-Mount Device) package with dimensions: 18.13 mm length × 12.20 mm width × 6.80 mm height.
6. What is the turns ratio for the RX and TX windings?
Both RX and TX windings have a turns ratio of 1CT:1CT, providing optimal signal integrity.
7. What configurations are available for RX and TX?
Both RX and TX are configured as T, C, S, which supports typical Ethernet network layouts.
8. What is the internal construction of this LAN transformer?
It uses an open frame construction with 8 cores per port, designed for efficient signal transmission.
9. Is this transformer compatible with automatic detection protocols?
Yes, it supports AutomDX, enabling automatic Ethernet speed and duplex detection.
10. How does this product compare to the NL version?
This G2497CG / G2405CG model is identical in specifications to the NL version, ensuring consistent performance and interchangeability.
