Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: QD72A01
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
QD72A01 |
Familiy: |
1000 Magnetics |
Mounting: |
DIP |
Samples: |
Available |
Number Of Ports: |
Quad |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
QD72A01 |
Familiy: |
1000 Magnetics |
Mounting: |
DIP |
Samples: |
Available |
Number Of Ports: |
Quad |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

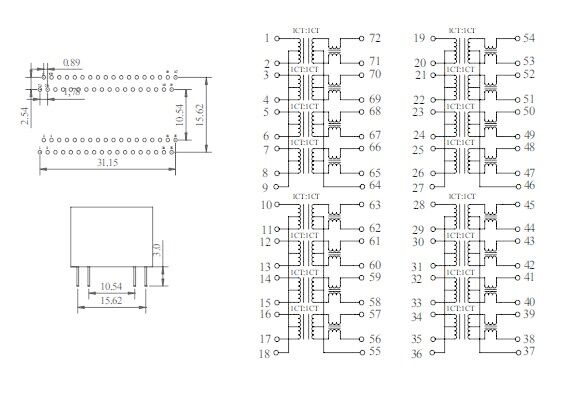

Detailed Information:
| 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | - |
| Part Number | QD72A01 |
| Speed | 1000BASE-T |
| Number of Ports |
Quad |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 24 |
| Package Height (Inches) | - |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | - |
| Package Length (mm) | 34.50 |
| Package Width (Inches) | - |
| Package Width (mm) | 18.80 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Competitive Price And Service
• Provide New Design For Customer Requirements
• Delivery Time:2-3 Weeks After Orders
Packing
1.Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2.We can do the packing according to the customer's requirement, but the price is different.
FAQ
Q:How can I get a Sample?
A:Just check with our sales
Q:How to develop a new product base on an ideal
A:Tell us what you want.tell we will design it for free
Q:How about OEM,ODM?
A:15 Years experiences in OEM,ODM
Q:How to reduce your risk?
A:Check the sample before order
Q:How about the after-sales service
A:Just tell us the problem after you receive the products.
Then we’ll help you deal with it together.
