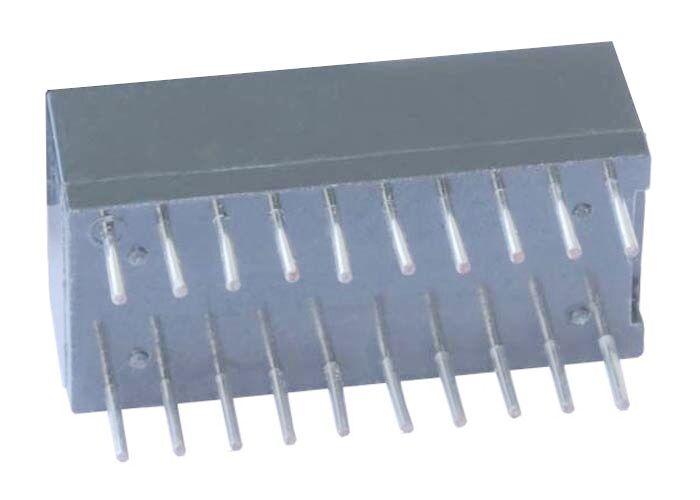

HST-2071DHR 10/100Base-T DIP Magnetics Transformer 1500Vrms

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HST-2071DHR

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100Base-T DIP Magnetics Transformer 1

,

DIP Magnetics Transformer 1500Vrms

,

HST-2071DHR Transformer

LINK-PP P/N:
HST-2071DHR
Familiy:
10/100 Magnetics
Mounting:
DIP
Samples:
Available
Number Of Ports:
Single
Hi-pot:
1500Vrms
OCL:
350uh Min
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LINK-PP P/N:
HST-2071DHR
Familiy:
10/100 Magnetics
Mounting:
DIP
Samples:
Available
Number Of Ports:
Single
Hi-pot:
1500Vrms
OCL:
350uh Min
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
HST-2071DHR 10/100Base-T DIP Magnetics Transformer 1500Vrms

HST-2071DHR 10/100 Base-T Magnetics Modules Single port DIP

Features:
● Designed to meet IEEE 802.3 requirements.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,DC 8mA .
● LL:0.5uH Max @100KHz, 0.1V
● Cww:75pF Max@100KHz, 0.1V
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
● Storeage Temperature -25℃ to +125℃.
● RoHS compliance.



Detailed Information:



Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
Part Number HST-2071DHR
Speed 10/100 BASE-T
Number of Ports

Single

Application - LAN ETHERNET (NON PoE)
Package SMD
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) -
Package Height (mm)

6.80

Package Length (Inches) -
Package Length (mm) 20.70
Package Width (Inches) -
Package Width (mm) 12.50
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Product Lines

Now has 22 production lines, using IE technology to analyze the process statistics, continuously improve the production process and technology, improve production efficiency.



QC Profile

> ISO9001:2008 Quality management system

> ISO14001:2004 Environmental management system

> RoHS Environmental protection certification

> CE certification

> FCC certification
