Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-1205DR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP HST-1025DARP/N: |
HST-1205DR |
Familiy: |
10/100 Magnetics |
Mounting: |
DIP |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP HST-1025DARP/N: |
HST-1205DR |
Familiy: |
10/100 Magnetics |
Mounting: |
DIP |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
● Designed to meet IEEE 802.3 requirements.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA.
● LL:0.5uH Max @100KHz, 0.1V.
● Cww:75pF Max@100KHz, 0.1V.
● DCR:1.4ΩMax.
● Designed to meet wave soldering 260℃.
● Storeage temperature -25℃ to +125℃.
● RoHS compliance.
Detailed Information:
| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| Part Number | HST-1205DR |
| Speed | 10/100 BASE-T |
| Number of Ports |
Single |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 6 |

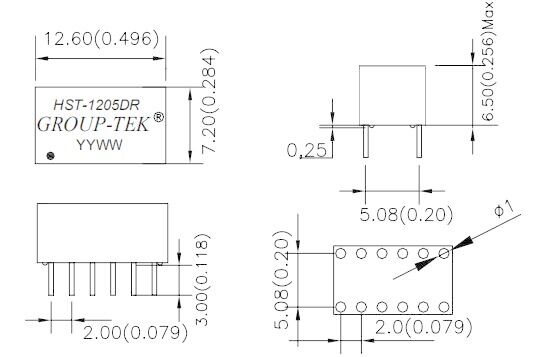

| Package Height (Inches) | - |
| Package Height (mm) |
6.50 |
| Package Length (Inches) | - |
| Package Length (mm) | 12.60 |
| Package Width (Inches) | - |
| Package Width (mm) | 7.20 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Product Lines
Now has 22 production lines, using IE technology to analyze the process statistics, continuously improve the production process and technology, improve production efficiency.
FAQ:
Q1: Are you a factory or trading company?
A1: We have 3 factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: What is your Warranty?
A3: All the network cabling products will have 1 years Warranty.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, PayPal.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
