Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-1601DR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
HST-1601DR |
Familiy: |
10/100 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
HST-1601DR |
Familiy: |
10/100 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
● Designed to meet IEEE 802.3 requirements.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA.
● LL:0.35uH Max @100KHz, 0.1V.
● Cww:50pF Max@100KHz, 0.1V.
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
Detailed Information:
| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | - |
| Part Number | HST-1601DR |
| Speed | 10/100 BASE-T |
| Number of Ports |
Single |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |

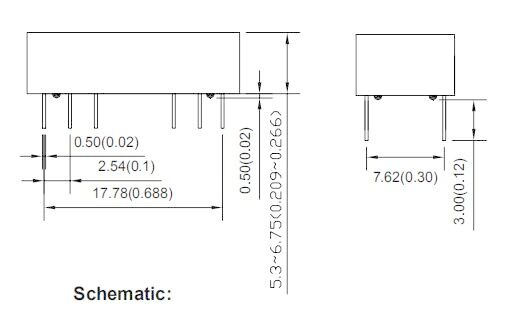

| Package Height (Inches) | - |
| Package Height (mm) |
5.30 |
| Package Length (Inches) | - |
| Package Length (mm) | 20.32 |
| Package Width (Inches) | - |
| Package Width (mm) | 9.65 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
FAQ
Q:How can I get a Sample?
A:Just check with our sales
Q:How to develop a new product base on an ideal
A:Tell us what you want.tell we will design it for free
Q:How about OEM,ODM?
A:15 Years experiences in OEM,ODM
Q:How to reduce your risk?
A:Check the sample before order
Q:How about the after-sales service
A:Just tell us the problem after you receive the products.
Then we’ll help you deal with it together.
