Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-24013SR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Spec: |
HST-24013SR |
Mounting: |
SMD |
Apllication: |
10/100Mbps Eth |
Samples: |
Free |
Project: |
Telecom Equipments |
Spec: |
HST-24013SR |
Mounting: |
SMD |
Apllication: |
10/100Mbps Eth |
Samples: |
Free |
Project: |
Telecom Equipments |

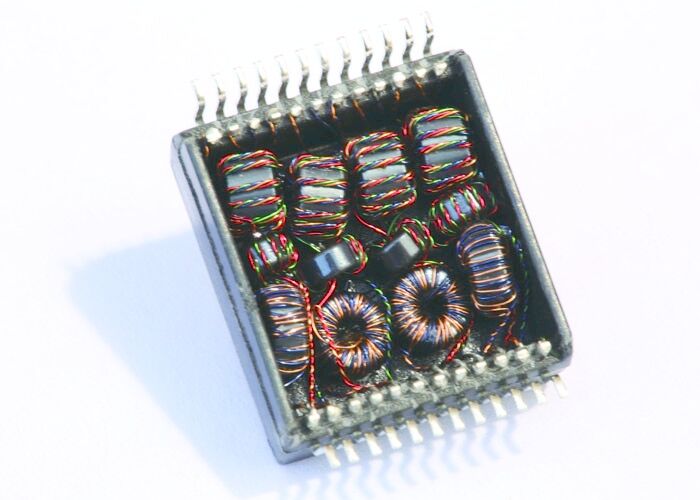

| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | LPXXXXNL |
| Other Part Number | HST-24013SR |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMT |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Number of Ports | SINGLE |
| Package Height (mm) | 6.25 |
| Package Length (mm) | 13.60 |
| Package Width (mm) | 12.00 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
● IEEE 802.3af/ANSI X3.263 compliant performance.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA.
● LL:0.5uH Max @100KHz, 0.1V.
● Cww:30pF Max@100KHz, 0.1V.
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
