Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

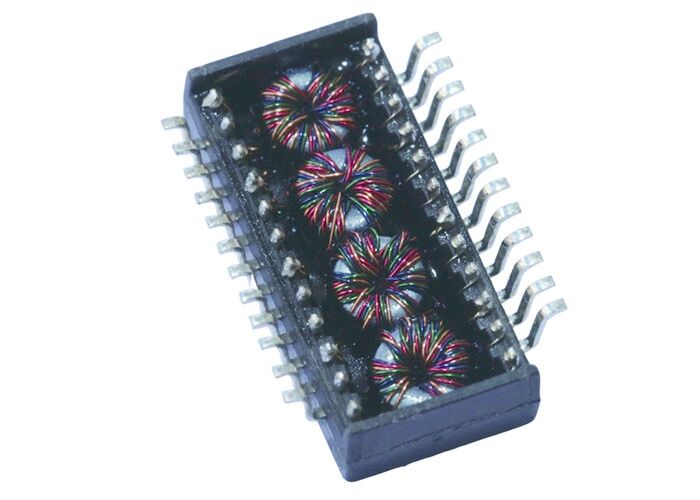

Model Number: HST-24092SCR / HST-24015SR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
HST-24092SCR / HST-24015SR |
Ethernet: |
1000 Base-T Gigabit |
Samples: |
Available 1~3 PCS |
Temperature: |
0 ℃ +70 ℃ |
Item: |
HST-24092SCR / HST-24015SR |
Ethernet: |
1000 Base-T Gigabit |
Samples: |
Available 1~3 PCS |
Temperature: |
0 ℃ +70 ℃ |
● Compliant with IEEE 802.3 standard for 1000 BASE-T.
● Suitable for PoE applications(350mA@48V continouos).
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA.
● LL:0.5uH Max @100KHz, 0.1V.
● Cww:30pF Max@100KHz, 0.1V.
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
● Designed for reflow soldering at temperatures up to 260℃.
● Storeage Temperature -25℃ to +125℃.
| Specification | P/N | Manufacturer | Series |
| HST-24092SCR / HST-24015SR | LPxxxNL | LINK-PP | Transformer |
| Transformer Type | Applications | Mounting Type | Turn Radio |
| Isolation and Data Interface | 1000 Base-T | Surface Mount | 1:1 |
| Unit Price (USD) |
PIN | Samples | Description |
| Supportive | 24 | Available | 1000BASE-T SINGLE PORT 1:1 DIP |
