HST-24076SCR 0.1Vrms 1000Mbps Ethernet Isolated Filter Transformers

Name: HST-24076SCR 0.1Vrms 1000Mbps Ethernet Isolated Filter Transformers
Brand: LINK-PP
SKU: HST-24076SCR
Price: 0.06 USD
Availability: InStock
Rating: 5 (104 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HST-24076SCR

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                1000Mbps Ethernet Isolated Filter Transformers, 0.1Vrms Ethernet Isolated Filter Transformers, HST-24076SCR Transformer


Specifications:	HST-24076SCR	Mounting:	SMT
Ethernet:	1x 10/100/1000Mbps	Samples:	Available
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

Specifications:	HST-24076SCR
Mounting:	SMT
Ethernet:	1x 10/100/1000Mbps
Samples:	Available
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

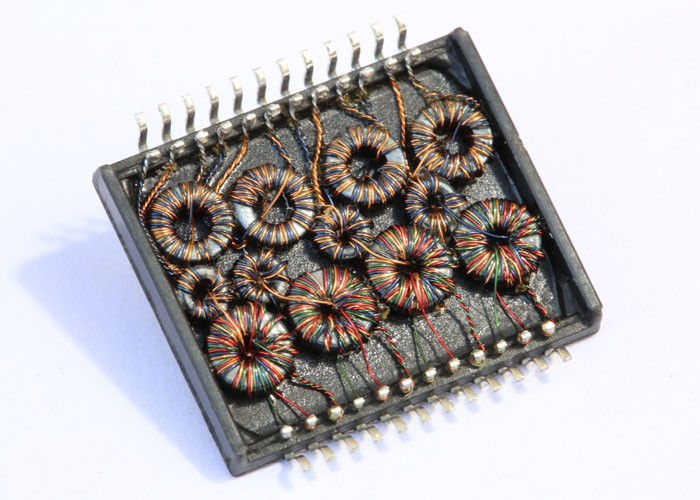

HST-24076SCR 0.1Vrms 1000Mbps Ethernet Isolated Filter Transformers

HST-24076SCR Gigabit Magnetic Transformers Ethernet Isolated Filter

Features:

● Compliant with IEEE 802.3 standard for 1000 BASE-T

● Suitable for PoE applications(350mA@48V continouos).

● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA

● LL:0.5uH Max @100KHz, 0.1V

● Cww:30pF Max@100KHz, 0.1V

● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.

● Designed for reflow soldering at temperatures up to 260℃ .

● Storeage Temperature -25℃ to +125℃.

● RoHS compliance
