Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

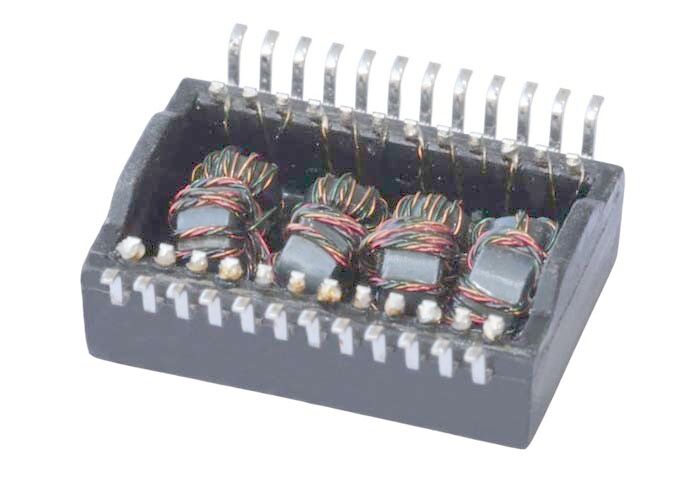

Model Number: HST-24002SAR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HST-24002SAR / HST-24001SAR |
Mounting: |
SMT |
Ethernet Applications: |
Gigabit Ethernet |
Turns Ratio: |
1:1 |
Series: |
1000BASE-T MAGNETICS MODULES |
Standard: |
IEEE 802.3ab |
Specifications: |
HST-24002SAR / HST-24001SAR |
Mounting: |
SMT |
Ethernet Applications: |
Gigabit Ethernet |
Turns Ratio: |
1:1 |
Series: |
1000BASE-T MAGNETICS MODULES |
Standard: |
IEEE 802.3ab |
● Compliant with IEEE 802.3 standard for 1000Base-T.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA .
● LL:0.35uH Max @100KHz, 0.1V
● Cww:35pF Max@100KHz, 0.1V
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
● Designed for reflow soldering at temperatures up to 260℃.
● Storeage temperature -25℃ to +125℃.
● RoHS compliance.
● Designed for long-haul Gigabit Ethernet 100/1000Base-T full duplex applications.
● Supports 4 pairs of Category 5 UTP cable.
● Cable interface for isolation and low common-mode emissions.
| Parameter | Specification |
|---|---|
| Turns Ratio (±2%) | 1CT : 1CT |
| Insertion Loss | 1–100 MHz: 1.0 dB Max |
| Return Loss |
1–30 MHz: -18 dB Min 40 MHz: -14.4 dB Min 50 MHz: -13.1 dB Min 60–80 MHz: -12 dB Min 100 MHz: -10 dB Min |
| Crosstalk (NEXT) |
30 MHz: -45 dB Min 60 MHz: -35 dB Min 100 MHz: -30 dB Min |
| DCMR |
30 MHz: -43 dB Min 60 MHz: -37 dB Min 100 MHz: -33 dB Min |
| Hi-Pot (Isolation Voltage) | 1500 Vrms Min |
