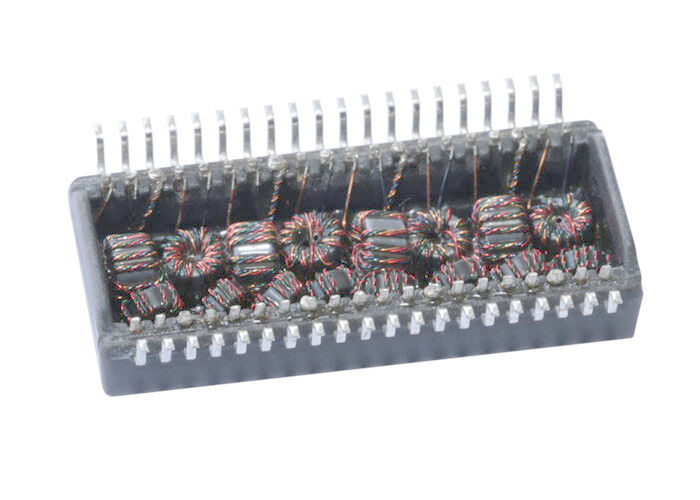

Model Number: HST-4047SXCR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HST-4047SXCR |
Mounting: |
SMD |
Ethernet: |
1x10/100Base-Tx |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HST-4047SXCR |
Mounting: |
SMD |
Ethernet: |
1x10/100Base-Tx |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
● Designed to meet IEEE 802.3 requirements.
● Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA.
● Capacitance between windings (Cww)75pF Max(at 100kHz, 0.1V).
● Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
Electrical Specification @25℃
1.Inductance(100KHz,100mV,8mADC):
350uH Min,16-14;11-9,Lp,0℃ to 70℃
2.Turns Ratio(±2%):
(1-3):(16:14)=1:1; (6-8):(11-9)=1:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(dB Min):
1-30MHz:-20.5 30-60MHz:-17
60-80MHz:-14 80-100MHz:-12
5.Crosstalk:
1-100MHz:-40dB Min
6.CMRR(dB Min):
1-100MHz:-40 100-500MHz:-20.5
7.Isolation Voltage:1500Vrms
8.Operating Temperature Range:0~70℃ or -40~+85℃
