Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-4093SCR / HST-4094SCR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Main Customer: |
TI Samsung Cisco Siemens... |
Part Number: |
HST-4093SCR / HST-4094SCR |
TX/RX: |
1CT:1CT |
Speed: |
10/100 Base-tx |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Main Customer: |
TI Samsung Cisco Siemens... |
Part Number: |
HST-4093SCR / HST-4094SCR |
TX/RX: |
1CT:1CT |
Speed: |
10/100 Base-tx |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
● Compliant with IEEE 802.3 standard for 1000Base-T.
● Primary including 350uH@100KHz 100mV 8mA DC Bias.
● Capacitance between winding: 35pF Max at 100KHz, 1V.
● Leakage indutance 0.5uH Max at 100KHz, 0.1V.
● Designed for reflow soldering at temperatures up to 260℃.
● Storeage temperature -25℃ to +125℃.
Description:

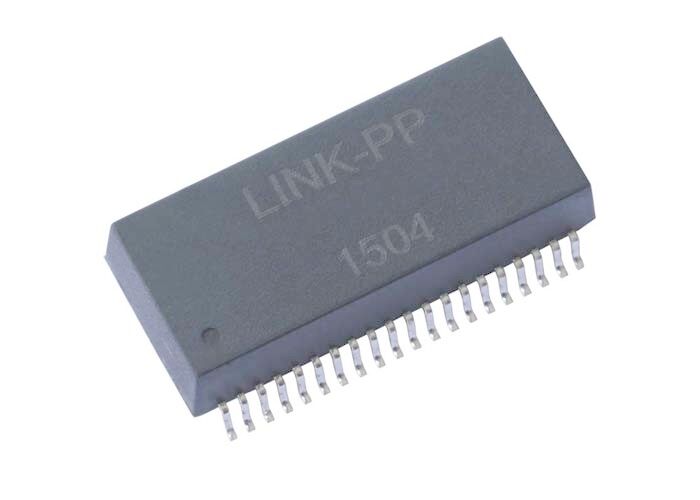

Single Port 10/100 Base-tx Ethernet Magnetics Transformers Modules
| Application | LAN ETHERNET(NON PoE) |
| AutomDX | YES |
| Comment | HST-4093SCR / HST-4094SCR |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Construction | TRANSFER MOLD |
| Cores Per Port | 16 |
| Number of Ports | QUAD |
| PCB | NO PCB |
| Package | SMT |
| Package Height (mm) | 5.25 |
| Package Length (mm) | 28.00 |
| Package Width (mm) | 12.00 |
| RoHS Compliant | YES-RoHS-6 |
| Speed | 10/100 BASE-TX |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Main P/N | LP1102NL |
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
