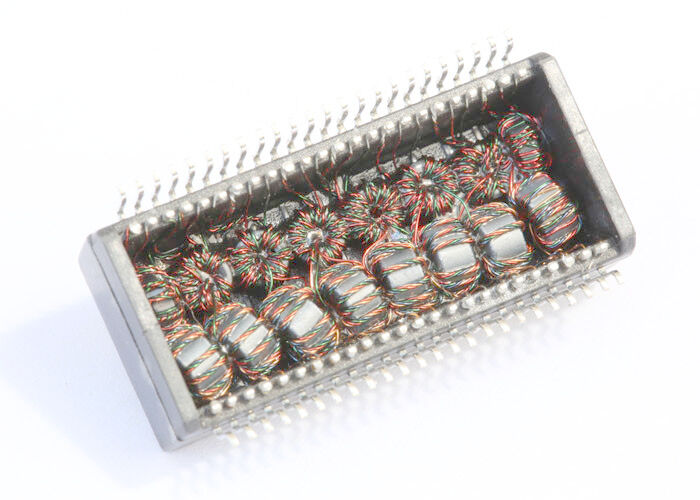

1500Vrms 1000Mbps Gigabit Ethernet Transformers HST-48001SCR HST-48002SAR

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HST-48001SCR

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

1500Vrms Gigabit Ethernet Transformers

,

Gigabit Ethernet Transformers

,

HST-48002SAR Transformer

Part Number:
HST-48001SCR / HST-48002SAR / HST-48003SR
Mounting:
SMT
Ethernet:
1x 10/100/1000Mbps
Free Samples:
Available 1-3 Pcs
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Type:
Gigabit Ethernet Transformers
Part Number:
HST-48001SCR / HST-48002SAR / HST-48003SR
Mounting:
SMT
Ethernet:
1x 10/100/1000Mbps
Free Samples:
Available 1-3 Pcs
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Type:
Gigabit Ethernet Transformers
1500Vrms 1000Mbps Gigabit Ethernet Transformers HST-48001SCR HST-48002SAR
HST-48001SCR HST-48002SAR HST-48003SR Gigabit Magnetic Transformers Overview



● Compliant with IEEE 802.3 standard for 1000Base-T.

● Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA.

● Capacitance between windings (Cww)30pF Max(at 100kHz, 0.1V).

● Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).DCR 1.2Ω Max.

● DCR Pri 0.9ΩMax Sec 1.2Ω Max.



Electrical Specifications (25):



1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec



Applications:



Used for networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
