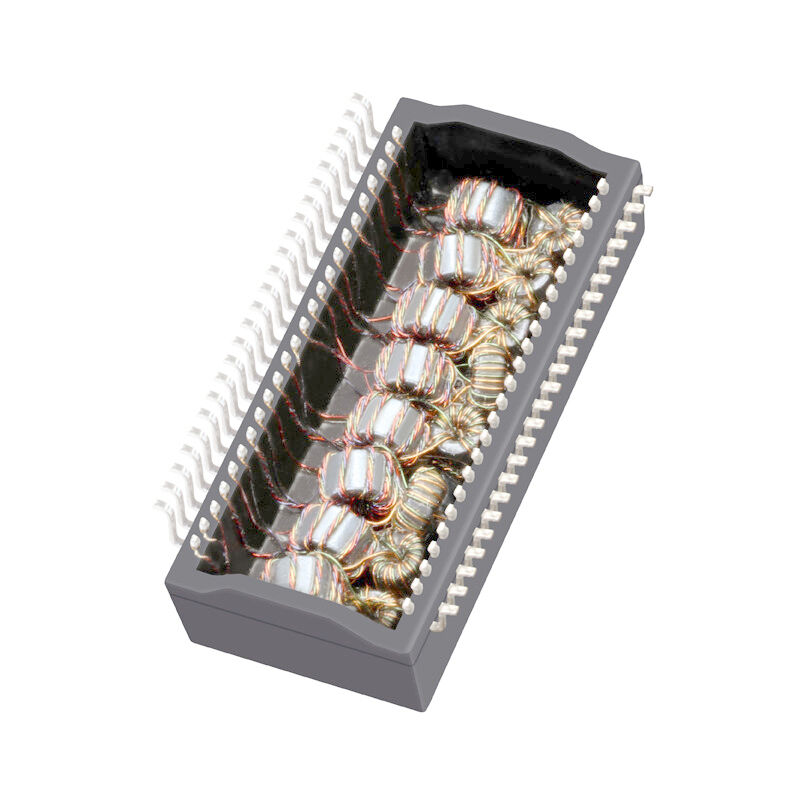

10Base-T Ethernet Isolation Transformer HN075CG HN075SG HN100CG HN100SG

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HN075CG HN075SG HN100CG HN100SG

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10Base-T Ethernet Isolation Transformer

,

HN075CG Ethernet Isolation Transformer

,

HN100SG Transformer Modules

PN.1:
HN075CG
PN.2:
HN075SG
PN.3:
HN100CG
PN.4:
HN100SG
Turns Ratio:
1 : 1
Mounting Type:
THT
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
PN.1:
HN075CG
PN.2:
HN075SG
PN.3:
HN100CG
PN.4:
HN100SG
Turns Ratio:
1 : 1
Mounting Type:
THT
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
10Base-T Ethernet Isolation Transformer HN075CG HN075SG HN100CG HN100SG
10 Base-T Isolation Transformer HN075CG HN075SG HN100CG HN100SG



10 Base-T Isolation Transformer For Modules HN075CG / HN075SG / HN100CG / HN100SG
Mingtek Part Number HN075CG / HN075SG / HN100CG / HN100SG
Speed 10 Base-T
Number of Ports Single Port
Application - LAN ETHERNET (NoN PoE )
Package DIP
Temperature 0 TO 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX/TX C,T,S
Pin Number 16
Construction OPEN FRAME
Cores Per Port 3
Package Height (mm) 6.5
Package Length (mm) 20.20
Package Width (mm) 9.8
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



LINK-PP Corporate Policy

1.The Corporate Goal Is To Achieve The Highest Level Of Customer

2.Satisfaction Through Continuous Improvements In Quality, Delivery And Service

3.LINK-PP Is Committed To And Expects Quality Performance From Every Employee

4.The Company Standard Is Defect-Free Products And Service

Applications:

1.Security

2.Medical

3.Networking

4.Telecom

5.Consumer

6.Industrial I/O

Our service

1.Free samples (excluding freight charge)

  1. 2.1 year guarantee period

  2. 3.Online technical supported

  3. 4.Factory evaluation anytime

  4. 5.OEM and ODM orders are welcome

  5. 6.Free Samples Are Available

  6. 7.90% Off Shipping Cost By DHL , UPS , DEDEX Or TNT

  7. 8.Delivery Time: 2-3 Weeks After Orders

  8. 9.Provide New Design For Customer Requirements

LINK-PP Corporate Policy

  • 1.Corporate goal is to achieve the highest level of customer satisfaction

  • 2.Through continuous improvements in quality, delivery and service

  • 3.LINK-PP is committed to and expects quality performance from every employee

  • 4.The Company Standard Is Defect-Free Products And Services

Successful customer:

  • 1.Intel use LINK-PP gigabit RJ45 in their MinnowBoardMAX

  • 2.Renesas use LINK-PP Gigabit RJ45 in their GR-ROSE Board

  • 3.TI use LINK-PP RJ45 in their BeagleBone Board

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

3.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4.What is your delivery time?

Usually within 2-3 working days

5.What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
