Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HN4051SG HN4052SG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN.1: |
HN4051SG HN4052SG |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN.1: |
HN4051SG HN4052SG |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

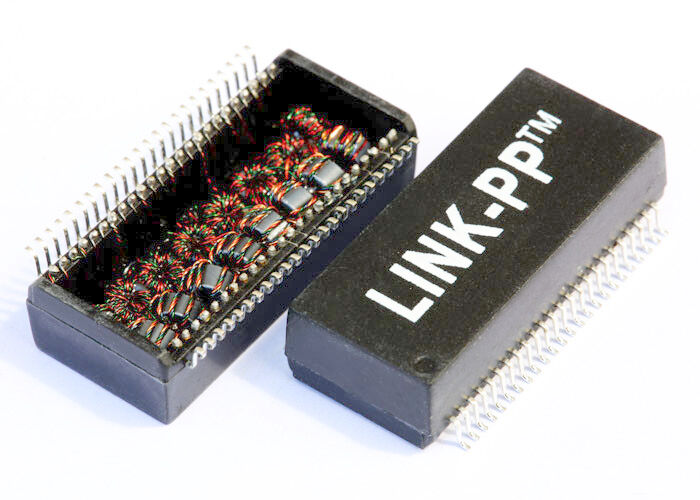

| 10 Base-T Quad Port Ethernet Network Transformer Modules HN4051SG / HN4052SG | |
| Mingtek Part Number | HN4051SG / HN4052SG |
| Speed | 10 Base-T |
| Number of Ports | Quad Port |
| Application - LAN | ETHERNET (NoN PoE ) |
| Package | SMT |
| Temperature | 0 TO 70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX/TX | C,T,S |
| Pin Number | 40 |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (mm) | 6.35 |
| Package Length (mm) | 27.94 |
| Package Width (mm) | 12.35 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
Main Products
• 10/100/1000M Lan Transformer and Filter
• RJ45 Connector with 10/100/1000M Magnetic
• Optical Transceiver Modules
Our Customers
• Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.
• Intel
LINK-PP Is the preferred supplier of Intel.
LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.
FAQ
Q: How long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days
USB Series: 7~15 days
Connector: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
