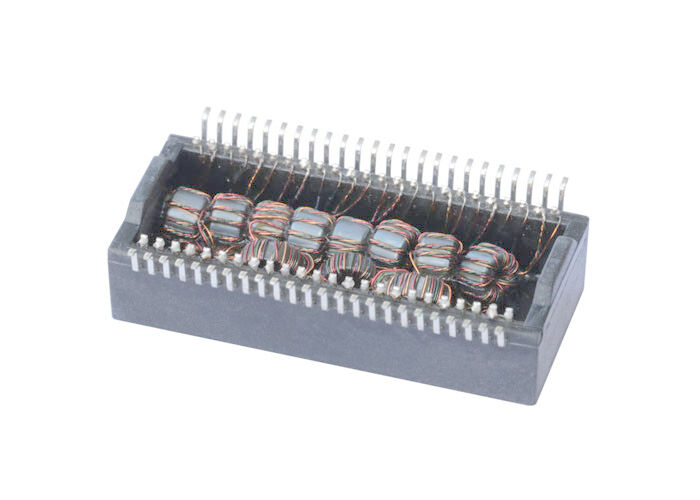

10Base-T Quad Port Transformer HN4053SG HN4054SG HN4055SG

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HN4053SG HN4054SG HN4055SG

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10Base-T Quad Port Transformer

,

Quad Port Transformer HN4053SG

,

HN4055SG Transformer Modules

PN.1:
HN4053SG HN4054SG HN4055SG
Turns Ratio:
1 : 1
Mounting Type:
THT
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
PN.1:
HN4053SG HN4054SG HN4055SG
Turns Ratio:
1 : 1
Mounting Type:
THT
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
10Base-T Quad Port Transformer HN4053SG HN4054SG HN4055SG
10 Base-T Quad Port Transformer HN4053SG HN4054SG HN4055SG



Isolation 2000 Vrms Surface Mountable 10 Base-T Quad Port Transformer HN4053SG / HN4054SG / HN4055SG
Mingtek Part Number HN4053SG
Speed 10 Base-T
Number of Ports Single Port
Application - LAN ETHERNET (NoN PoE )
Package SMT
Temperature 0 TO 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX/TX C,T,S
Pin Number 40
Construction OPEN FRAME
Cores Per Port 12
Package Height (mm) 6.35
Package Length (mm) 27.95
Package Width (mm) 12.35
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
