Model Number: HN4464SG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.08-$1.2 Negotiable
Packaging Details: T&R
Delivery Time: 1-2 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
P/N.1: |
HN4464SG |
P/N.2: |
HN4464S2G |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Support: |
PDF/3D/ISG/Stp/Step/Datasheet |
Type: |
QUAD 10/100Base-Tx Transformer |
P/N.1: |
HN4464SG |
P/N.2: |
HN4464S2G |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Support: |
PDF/3D/ISG/Stp/Step/Datasheet |
Type: |
QUAD 10/100Base-Tx Transformer |

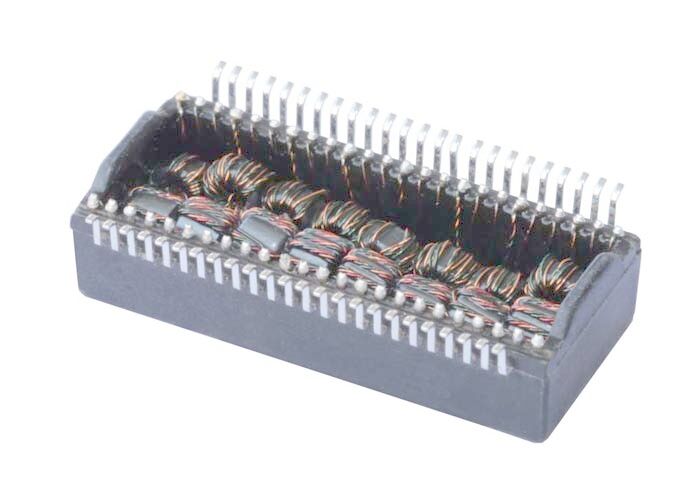

| HN4464SG HN4464S2G Quad Port 10/100 Base-TX Transformer | |
| Part number | HN4464SG / HN4464S2G |
| Speed | 10/100 BASE-T |
| Number of Ports | QUAD |
| Application - LAN | ETHERNET (NON PoE) |
| Package | DIP |
| Temperature | 0 TO +70 |
| AutomDX | YES |
| Package Height (mm) | 6.32 |
| Package Length (mm) | 27.94 |
| Package Width (mm) | 12.37 |
|
Specification |
Value |
Test Condition |
|---|---|---|
|
Open Circuit Inductance (OCL) |
350µH Min |
100KHz, 0.1V, 8mA DC Bias |
|
Turns Ratio |
1CT:1CT ±2% |
50KHz, 0.5V |
|
Insertion Loss |
-1.1dB Max |
0.1 ~ 100MHz |
|
Return Loss |
-18dB Min (0.5-30MHz) |
|
|
|
-15dB Min (40MHz) |
|
|
|
-13dB Min (50MHz) |
|
|
|
-11dB Min (60-80MHz) |
|
|
Cross Talk |
-38dB Min |
0.1-100MHz |
|
Common Mode Rejection Ratio (CMRR) |
-40dB Min |
0.1-100MHz |
|
CWW (Winding Capacitance) |
50pF (Typ) |
|
|
Primary Resistance (Pri. Resistance) |
0.9Ω Max |
|
|
Hi-Pot (Isolation Voltage) |
1500Vrms (Pri/Sec) |
