Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HN4802SG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN.1: |
HN4802SG |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN.1: |
HN4802SG |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

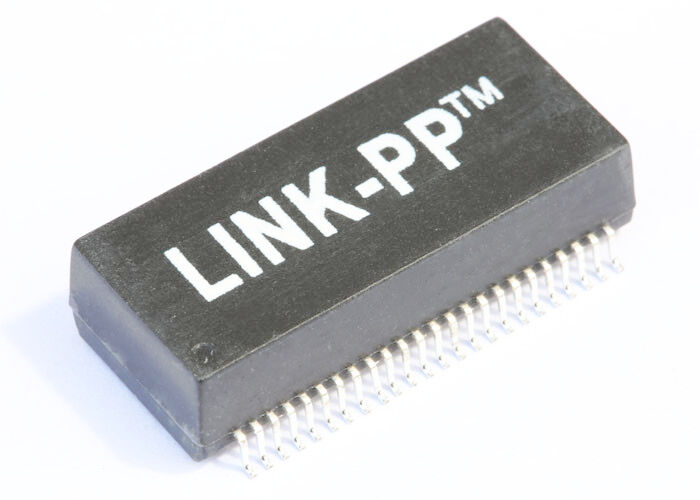

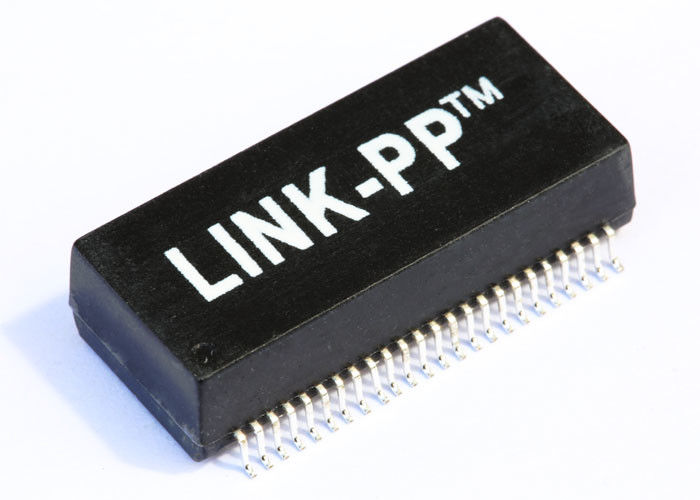

| IEEE 802.3af/ANSI X3.263 10/100 Base-T Voip Magnetics Modules HN4802SG | |
| Mingtek Part Number | HN4802SG |
| Speed | 10/100 Base-T |
| Number of Ports | Single Port |
| Application - LAN | ETHERNET (NoN PoE ) |
| Package | SMT |
| Temperature | 0 TO 70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX/TX | C,T,S |
| Pin Number | 48 |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (mm) | 7.5 |
| Package Length (mm) | 27.85 |
| Package Width (mm) | 15.60 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
About Our BMS Transformers
In large battery pack applications with daisy chain connections, the number of cells connected in series is very high, and the large voltage differences demand component-to-component isolation. The serial communication links between boards need to be isolated by transformer coupling circuits instead of capacitor coupling.
Using the potential difference between ground and the maximum DC voltage when all cells are connected, the system’s working voltage can be determined by the designer and used to obtain the isolation breakdown voltage and the creepage distance required. However, an approximation of the working voltage can be obtained only knowing the total DC voltage supported by all the combined cells or battery packs. Then the selection of a correct isolation transformer module is a choice of the module with the nearest, but higher, working voltage and the preferred number of channels, size and shape. Having a broad range of products, as offered by Pulse Electronics, makes the selection of isolation transformers more precise and simple.
