Home > products > Discrete Magnetic Transformers > AutomDX 10/100/1000Base-T Magnetics Modules Lan Transformer HN24017BG

AutomDX 10/100/1000Base-T Magnetics Modules Lan Transformer HN24017BG

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HN24017BG

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

1000Base-T Magnetics Modules Lan Transformer

,

AutomDX Magnetics Modules Lan Transformer

,

HN24017BG Lan Transformer

PN.1:
HN24017BG
Turns Ratio:
1 : 1
Mounting Type:
THT
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
PN.1:
HN24017BG
Turns Ratio:
1 : 1
Mounting Type:
THT
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet

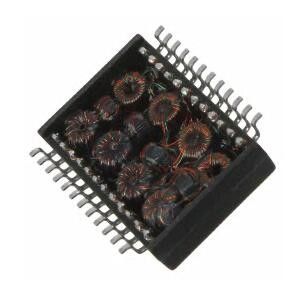

AutomDX 10/100/1000Base-T Magnetics Modules Lan Transformer HN24017BG
10/100/1000 Base-T Magnetics Modules Lan Transformer HN24017BG



10/100/1000 Base-T Magnetics Modules Lan Transformer HN24017BG
Part Number HN24017BG
Speed 10/100/1000BASE-T
Number of Ports SINGLE/DUAL/QUAD
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature 0 TO 70/-40 TO +85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX C,T,S
Configuration TX C,T,S
Construction OPEN FRAME
Cores Per Port 4/6/8/12
Package Height (Inches) 0.236
Package Height (mm) 5.97
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.380
Package Width (mm) 9.53
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Target Applications – embedded computer, Rapid Deployment, Portable Applications

Industrial Ethernet Modules and fmc board

High performance for maximum EMI suppression.

LAN interface suitable for 1000 Base-TX of network cammeras

Embedded mini PCI express Cellular modemfrom SierraWireless
