Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

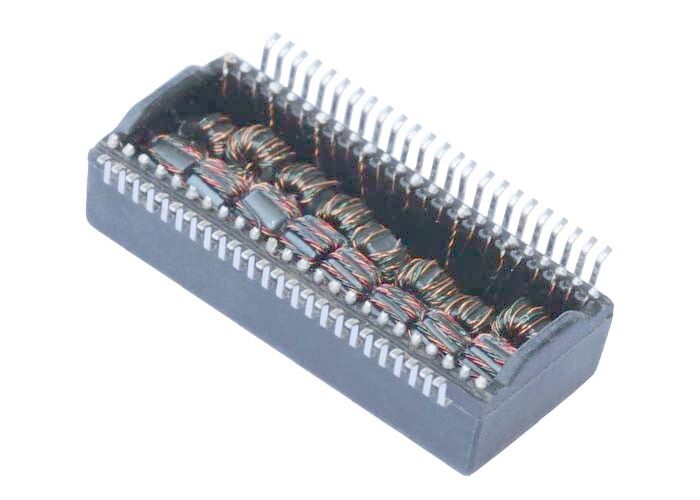

Model Number: H6101FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.09-$2.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Pulse Electronics: |
H6101FNLT |
LINK-PP P/N: |
LP6080NL |
Application: |
Ethernet Transformer/Choke |
Data Rate: |
100/1000base-T POE(+) |
PoE: |
PoE (4pr) |
Turns Ratio: |
1:1 |
Pulse Electronics: |
H6101FNLT |
LINK-PP P/N: |
LP6080NL |
Application: |
Ethernet Transformer/Choke |
Data Rate: |
100/1000base-T POE(+) |
PoE: |
PoE (4pr) |
Turns Ratio: |
1:1 |
| MEETS IEEE 802.3 SPECIFICATION | |
| PARAMETER | SPECIFICATIONS |
| TURNS RATIO | 1.00士2% |
| POLARITY | PER SCHEMATIC |
| INSERTION LOSS |
-1.2 dB MAX @ 100KHz -0.2-0.002*1.4 dB MAX @ 1-125KHz |
| RETURN LOSS |
-16 dB MIN @ 1-40KHz -10+20*LOG 10(f/80 MHz)dB MIN @ 40-100KHz |
| INDUCTANCE(OCL) | 350uH MIN |
| CROSSTALK, ADJACENT CHANNELS |
-50 dB MIN @ 1MHz -55+22*LOG10(f/10)dB MIN @ 10-100MHz |
| COMMON MODE REJECTION RATIO |
-50 dB MIN @ 2MHz -15+20*LOG10(f/200)dB MIN @ 30-200MHz |
| DC RESISTANCE,1/2 WINDING | 0.30 OHMS TYP |
| DC RESISTANCE BALANCE | ±0.05 OHMS MAX(CENTER TAP SYMMETRY) |
| DC CURRENT/VOLTAGE RATING-PSE PINS | 600 mA MIN @ 57V(CONTINUOUS) |
| INPUT-OUTPUT ISOLATION | 1500 VRMS MIN @60 SECONDS |
1. Over 20 Years of Experience:
Since 1997, LINK-PP has specialized in the design, development, production, and sales of RJ45 network connectors and magnetic transformers.
2. OEM Services:
High-quality, reliable, and reasonably priced network magnetics recognized by Fortune 500 OEMs worldwide.
3. Production Capabilities:
The factory is equipped with in-house injection molding, stamping, automated assembly, and testing facilities. An independent R&D lab enhances innovation.
4. Refund and Replacement Assurance:
LINK-PP offers robust guarantees, ensuring customer satisfaction and product reliability.
