Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

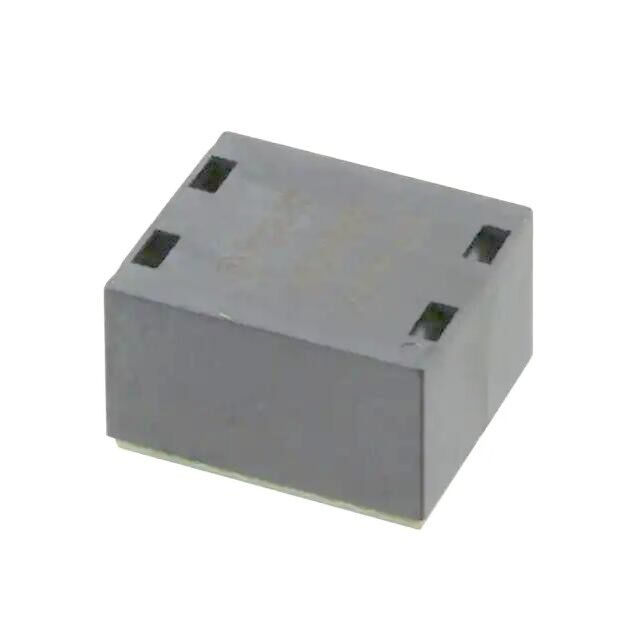

Model Number: H6200NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
H6200NL |
Familiy: |
1000 Magnetics |
Mounting: |
DIP |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
H6200NL |
Familiy: |
1000 Magnetics |
Mounting: |
DIP |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:
|
Part Status
|
Active
|
|
Transformer Type
|
LAN 10/100/1000 Base-T
|
|
Inductance
|
120µH, 350µH
|
|
ET (Volt-Time)
|
-
|
|
Turns Ratio - Primary:Secondary
|
1CT:1CT Transmitter, 1CT:1CT Receiver
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
0.580"" L x 0.680"" W (14.73mm x 17.27mm)
|
|
Height - Seated (Max)
|
0.440"" (11.18mm)
|
|
Operating Temperature
|
0°C ~ 70°C
|
Our Services:
20 Years Experience
Our company since 1997 RJ45 network connector production in th past 20 years,only focus on RJ45 network connector design and development and production and sales.
OEM Services
For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.
What's the Refund&Replacement?
If there are any quality problems, please make sure all these items must be returned in their original condition to qualify for a refund or replacement. (Any used or damaged items can not be refunded or replaced).
