Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

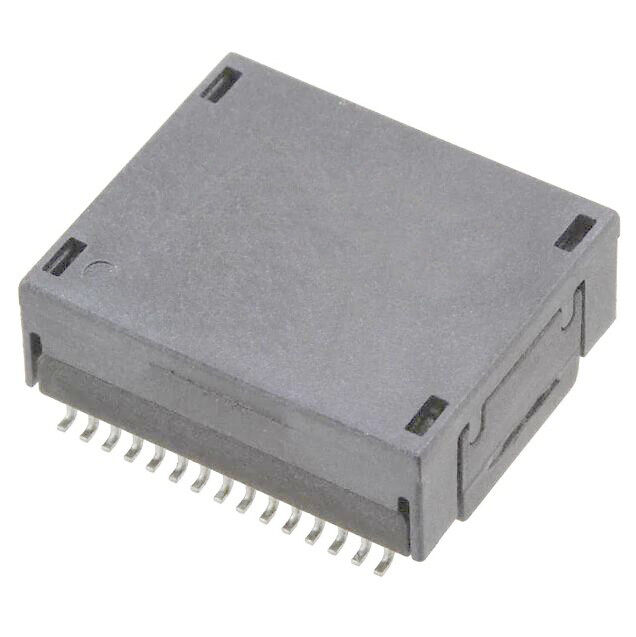

Model Number: H7137FNL / H7137FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
H7137FNL / H7137FNLT |
Application: |
Lan Ethernet (NoN PoE) |
Apllication: |
10G Base-T |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
Part Number: |
H7137FNL / H7137FNLT |
Application: |
Lan Ethernet (NoN PoE) |
Apllication: |
10G Base-T |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
|
Part Status
|
Active
|
|
Transformer Type
|
LAN 10G Base-T
|
|
Inductance
|
-
|
|
ET (Volt-Time)
|
-
|
|
Turns Ratio - Primary:Secondary
|
1:1
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
0.698"" L x 0.585"" W (17.73mm x 14.86mm)
|
|
Height - Seated (Max)
|
0.290"" (7.37mm)
|
|
Operating Temperature
|
0°C ~ 70°C
|
single port, dual port, and quad port modules
LAN transformer modules are designed for most popular 10/100 Base TX and Gigabit Ethernet transmission data standards over copper LANs. These LAN modules support the continued convergence of voice and data networking, computing, and storage traffic in the enterprise and data center with excellent insertion loss, return loss, and crosstalk performance and reliability.
These modules can easily be qualified with leading IC/PHY manufacturers chip sets. LAN transformer modules meet IEEE and ANSI standards, which makes for easy inclusion and qualification in the end product.
LINK-PP offers LAN Discrete Transformer Modules optimized for all major LAN transceivers. All LAN Discrete Transformer Modules provide electrical circuit isolation that meets IEEE 802.3, while maintaining signal integrity needed for the most demanding applications. Pulse Electronics LAN Discrete Transformer Modules feature a peak reflow temperature rating of 245ºC.
