Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 74984104401
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specifications: |
74984104401 |
Ethernet: |
10/100 Magnetic |
Latch: |
Tab Both |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Cores: |
4 |
LED: |
Green&Yellow/Green&Yellow |
Specifications: |
74984104401 |
Ethernet: |
10/100 Magnetic |
Latch: |
Tab Both |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Cores: |
4 |
LED: |
Green&Yellow/Green&Yellow |

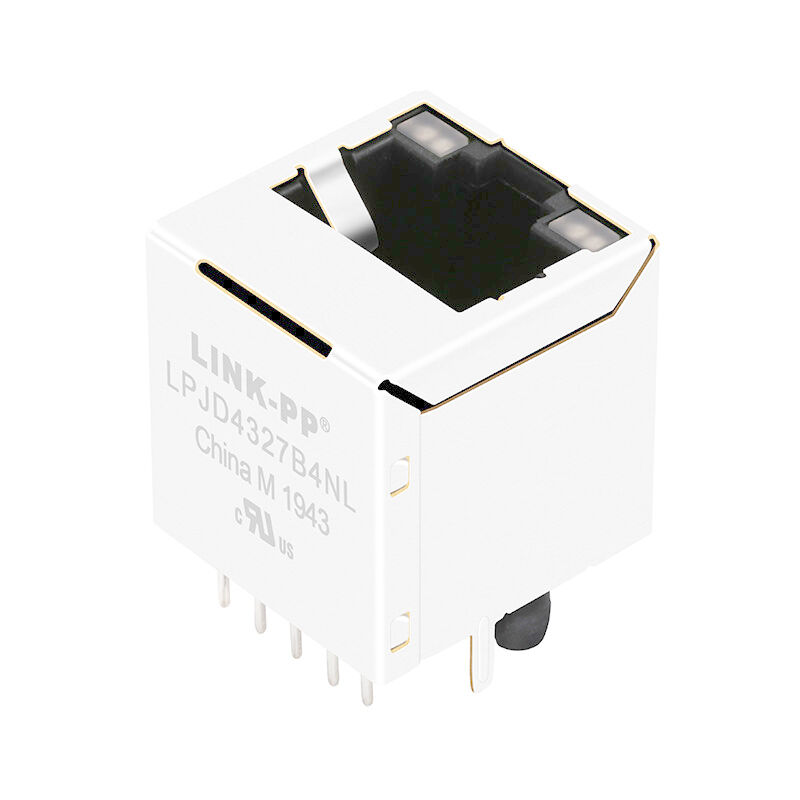

74984104401 1x1 Port Vertical RJ45 Connector With 10/100 Base-T LPJD4327B4NL
|
1 Port Vertical RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX, Power over Ethernet+ (PoE+),RoHS |
|
|
LINK-PP Part Number |
LPJD4327B4NL |
|
Cross Part Number |
74984104401 |
| Connector Type | RJ45 |
|
Part Status |
Active |
| Applications | 10/100 Base-T, AutoMDIX, Power over Ethernet+ (PoE+) |
|
AutomDX |
YES |
|
Bst Circuit |
YES |
|
Configuration RX |
T,C |
|
Configuration TX |
T,C |
|
Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
|
Cores per Port |
4 |
|
LED Option |
Green/Yellow LEDs |
|
Latch |
TAB Up |
|
Number of Ports |
1X1 |
|
PCB |
FR4 |
|
PCB Mount Angle |
SIDE ENTRY |
|
PCB Retaining Post |
T POST |
|
Package Height (Inches) |
0.657 |
|
Package Height (mm) |
16.68 |
|
Package Length (Inches) |
0.665 |
|
Package Length (mm) |
16.90 |
|
Package Width (Inches) |
0.636 |
|
Package Width (mm) |
16.15 |
|
Pin Type |
THT SOLDER |
|
RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
|
Search |
YES |
|
Shield EMI Tabs |
With |
|
Speed |
10/100 Base-T |
|
Temperature |
0 TO + 70℃ |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
1.Products are classified by the type of structure:
a. Integrated RJ45 Connector；
b. RJ45 Connector without Integrated Magnetics;
2.Products are classified by the welding type:
a. SMT, Surface Mount Type
b. TH, Through-Hole Type
3. Products are classified by transfer rate:
a. 10Base-T； b. 10/100Base-T； c. Gigabit Base-T； d. 25G/5G Base-T ; e. 10G Base-T.
5.Products are classified by appearance:
a. Single Port b. 1xN Port, 2xN Port c. Low Profile d. SMT
e. Vertical f. RJ45 with Single Usb / Dual Usb)
6.Products are classified by POE function:
a. With PoE/PoE+ Enabled Filtered Connectors
b. Without PoE/PoE+ Unabled Filtered Connectors
