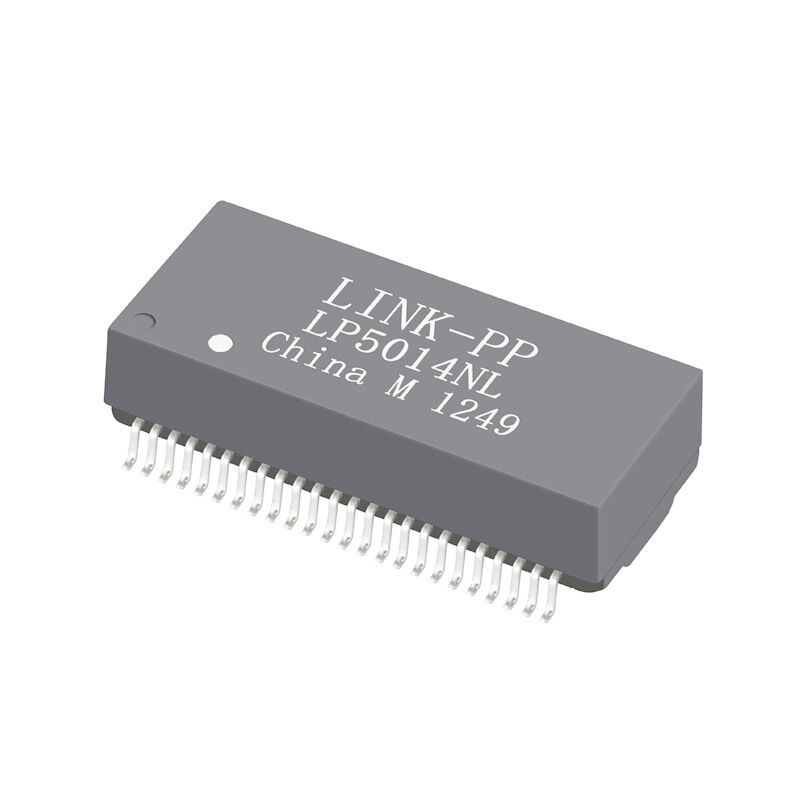

LP5014NL Ethernet Gigabit Transformer Magnetic Modules 48 Pin SMT 824-00393F

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5014NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

LP5014NL

,

824-00393F Magnetic Modules

,

SMT Ethernet Gigabit Transformer

Manufacturer:
LINK-PP
P/N:
LP5014NL
Mounting:
SMD
Apllication:
10/100/1000base-T
Measure:
28.0x15.40x7.0mm
Samples:
Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Manufacturer:
LINK-PP
P/N:
LP5014NL
Mounting:
SMD
Apllication:
10/100/1000base-T
Measure:
28.0x15.40x7.0mm
Samples:
Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LP5014NL Ethernet Gigabit Transformer Magnetic Modules 48 Pin SMT 824-00393F
Dual Port, 10/100/1000 BASE-T Ethernet Transformer Modules, SMD, Rohs

LINK-PP Part Number: LP5014NL Transformer Type Lan Transformer
Part Status Active Turns Ratio - Primary:Secondary 1:1 Transmitter, 1:1 Receiver
Construction OPEN FRAME Application-Lan Ethernet(NoN PoE)
Number of Ports Dual Port Speed 10/100/1000 Base-T
Package Tape & Reel Cores per Port 16
AutomDX Yes Comment SAME AS NL VERSION
PIN number 48 Mounting Type Surface Mount
Package Height (Inches/mm) 0.276/7.00 Package Length (Inches/mm) 1.102/28.00
Package Width (Inches/mm) 0.606/15.40 Temperature 0℃ TO +70℃
Turns Ratio RX/TX 1CT:1CT Configuration RX/TX T,C,S

Electrical Specifications @25℃
1.Turns Ratio: 1CT:1
2.OCL: 350uH min
@100KHz,100mV,8mADC Bias
3.Insertion Loss(dB max):
1-65MHz:-1.0 65-100MHz:-1.1
100-125MHz:-1.5
4.Return Loss(dB min):
1-30MHz:-18 40MHz:-18
50MHz:-16 60-80MHz:-12
100MHz:-10
5.Crosstalk(dB min):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR:(dB min):
30MHz:-43 60MHz:-37
100MHz:-33
7.Isolation Voltage: 1500Vrms min
