Home > products > Vertical RJ45 Jack > A-2014-2S-4-N-R Mod Jack Rj45 8p8c Connector LPJE601-3DNL

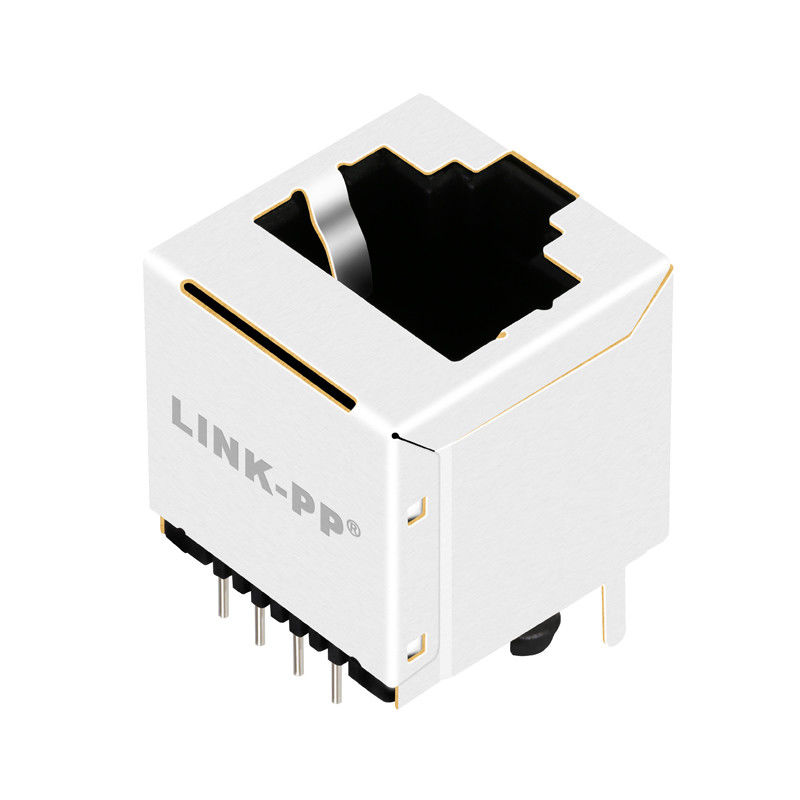

A-2014-2S-4-N-R Mod Jack Rj45 8p8c Connector LPJE601-3DNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: A-2014-2S-4-N-R

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

LPJE601-3DNL rj45 8p8c connector

,

Auto MDIX rj45 8p8c connector

,

rj45 8p8c modular connector

Specifications:
A-2014-2S-4-N-R
Ethernet:
-
Latch:
Tab Up
File:
PDF/3D/ISG/Stp/Step/Datasheet
Number Of Cores:
-
LED:
Without Leds
Specifications:
A-2014-2S-4-N-R
Ethernet:
-
Latch:
Tab Up
File:
PDF/3D/ISG/Stp/Step/Datasheet
Number Of Cores:
-
LED:
Without Leds
A-2014-2S-4-N-R Mod Jack Rj45 8p8c Connector LPJE601-3DNL

A-2014-2S-4-N-R 8p8c 1x1 Port Vertical RJ45 Connector Without Magnetics LPJE601-3DNL





1 Port Vertical RJ45 Magjack Connector Through Hole , AutoMDIX,RoHS

LINK-PP Part Number

LPJE601-3DNL

Cross Part Number

A-2014-2S-4-N-R

Connector Type RJ45

Part Status

Active

Applications AutoMDIX,

AutomDX

YES

Bst Circuit

YES

Configuration RX

T,C

Configuration TX

T,C

Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Cores per Port

-

LED Option

Without LEDs

Latch

TAB Up

Number of Ports

1X1

PCB

FR4

PCB Mount Angle

SIDE ENTRY

PCB Retaining Post

T POST

Package Height (Inches)

0.646

Package Height (mm)

16.40

Package Length (Inches)

0.657

Package Length (mm)

16.70

Package Width (Inches)

0.636

Package Width (mm)

16.15

Pin Type

THT SOLDER

RoHS Compliant

YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

Search

YES

Shield EMI Tabs

Without

Speed

-

Temperature

-40 TO + 85℃

Turns Ratio RX

1CT:1CT

Turns Ratio TX

1CT:1CT



1.Products are classified by the type of structure:



a. Integrated RJ45 Connector;



b. RJ45 Connector without Integrated Magnetics;



2.Products are classified by the welding type:



a. SMT, Surface Mount Type



b. TH, Through-Hole Type



3. Products are classified by transfer rate:



a. 10Base-T; b. 10/100Base-T; c. Gigabit Base-T; d. 25G/5G Base-T ; e. 10G Base-T.



5.Products are classified by appearance:



a. Single Port b. 1xN Port, 2xN Port c. Low Profile d. SMT



e. Vertical f. RJ45 with Single Usb / Dual Usb)



6.Products are classified by POE function:



a. With PoE/PoE+ Enabled Filtered Connectors



b. Without PoE/PoE+ Unabled Filtered Connectors
