Model Number: HST-2027DAR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN.1: |
HST-2027DAR |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
25.700mm L X101.10mm W |
Hipot: |
1500V |
Mass Production: |
LP2064NL |
PN.1: |
HST-2027DAR |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
25.700mm L X101.10mm W |
Hipot: |
1500V |
Mass Production: |
LP2064NL |
H2001DG Quad Port 20 Pin Transformer Modules ,10/100 Base-TX 350uH OCL Through Hole
|
H2001DG |
Cross LP2064NL |
10/100 2 Port Transformer |
Datasheet/Price/Specification/3D |

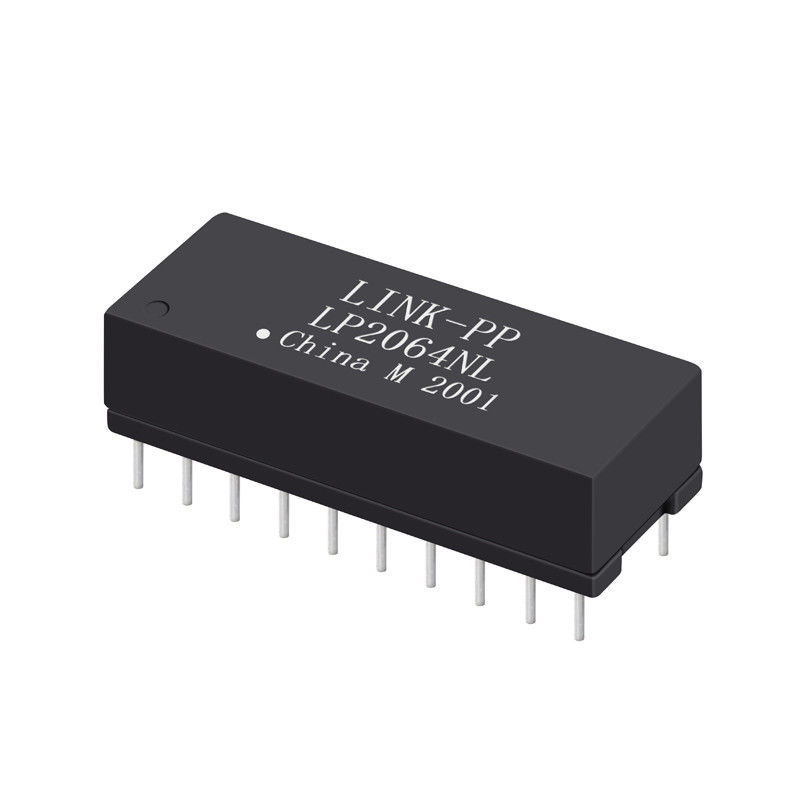

| LINK-PP Part Number: | LP2064NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Dual Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 8 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 20 | Mounting Type | THT |
| Package Height (Inches/mm) | 0.437/11.10 | Package Length (Inches/mm) | 1.012/25.70 |
| Package Width (Inches/mm) | 0.398/10.10 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
Electrical Specifications @ 25°C
1.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
2.Pri OCL: 350uH MIN
@100KHz,0.1V,8mADC Bias.
3.Insertion Loss:
1-100MHz:-1.15dB MAX
4.Return Loss(dB MIN):
1-30MHz:-18 30-60MHz:-14
60-80MHz:-12
5.Crosstalk:
1-100MHz:-38dB MIN
6.CMRR: 1-100MHz:-40dB TYP
7.Hi-Pot: 1500Vrms @0.5mA
8.Operating Temperature: 0℃～70℃/-40℃～+85℃
| LP2064NL Corresponding other models | |
| LP2064NL | PM48-2064KPDF |
| LP2064NL | HR612004 |
| LP2064NL | D20601G |
| LP2064NL | H82001D |
