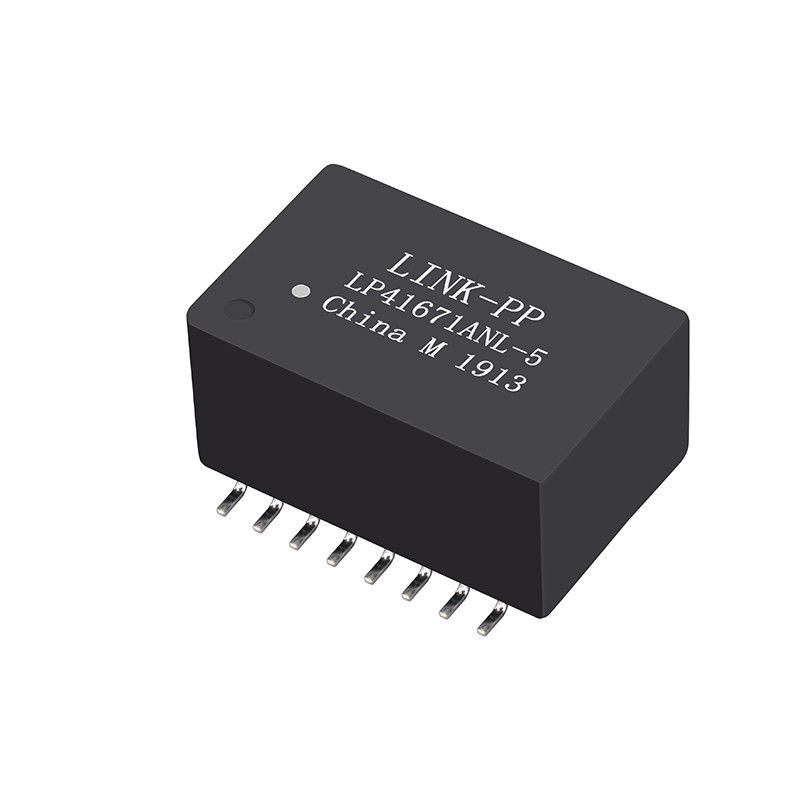

TGR110-E555N16LF Hipot 5000 Vrms 10/100 Base-T 16 Pin Single Port SMT Magnetic Modules LP41671ANL-5

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP41671ANL-5

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

Single Port SMT Magnetic Modules

,

16 Pin SMT Magnetic Modules

,

LP41671ANL-5 SMT Magnetic Modules

P/N:
LP41671ANL-5
Ethernet:
10/100 Power
Measure:
24.55x18.25x13mm
Mounting:
SMD
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
P/N:
LP41671ANL-5
Ethernet:
10/100 Power
Measure:
24.55x18.25x13mm
Mounting:
SMD
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
TGR110-E555N16LF Hipot 5000 Vrms 10/100 Base-T 16 Pin Single Port SMT Magnetic Modules LP41671ANL-5
TGR110-E555N16LF Hipot 5000 Vrms 10/100 Base-T 16 Pin Single Port SMT Magnetic Modules LP41671ANL-5

TGR110-E555N16LF Hipot 5000 Vrms 10/100 Base-T 16 Pin Single Port SMT Magnetic Modules LP41671ANL-5 0

Specification
LINK-PP Part Number: LP41671ANL-5
Transformer Type Lan Transformer
Part Status Active
Turns Ratio - Primary:Secondary 1:1 Transmitter, 1:1 Receiver
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port
Speed 10/100 Base-T
Package Tape & Reel
Cores per Port 4
Isolation Voltage 5000Vrms
PIN number 16
Mounting Type Surface Mount
Temperature -40℃ TO +85℃


TGR110-E555N16LF Hipot 5000 Vrms 10/100 Base-T 16 Pin Single Port SMT Magnetic Modules LP41671ANL-5 1































































Applications:

Central Controller, Embedded Ethernet controller, Active Optical Network, Fingerprint Access Control, Industrial embedded communication controller, Intelligent monitoring equipment, Smarthome Control Systems, Passive optical access networks, NETWORKED VIDEO INTEGRATION DEVICES, STORAGE SYSTEMS FOR IP VIDEO SURVEILLANCE, IP CAMERA INSTALLATION TOOLS.
