Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: GSC-5003P-R
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
749020022A |
P.N China: |
LP5020NLR |
Frequency Range: |
1 MHz To 100 MHz |
Application: |
Dual 10/100/1000Mbps |
Termination Style: |
SMD/SMT |
Solation Voltage:: |
1.5KV |
Samples: |
Free |
Specification: |
749020022A |
P.N China: |
LP5020NLR |
Frequency Range: |
1 MHz To 100 MHz |
Application: |
Dual 10/100/1000Mbps |
Termination Style: |
SMD/SMT |
Solation Voltage:: |
1.5KV |
Samples: |
Free |

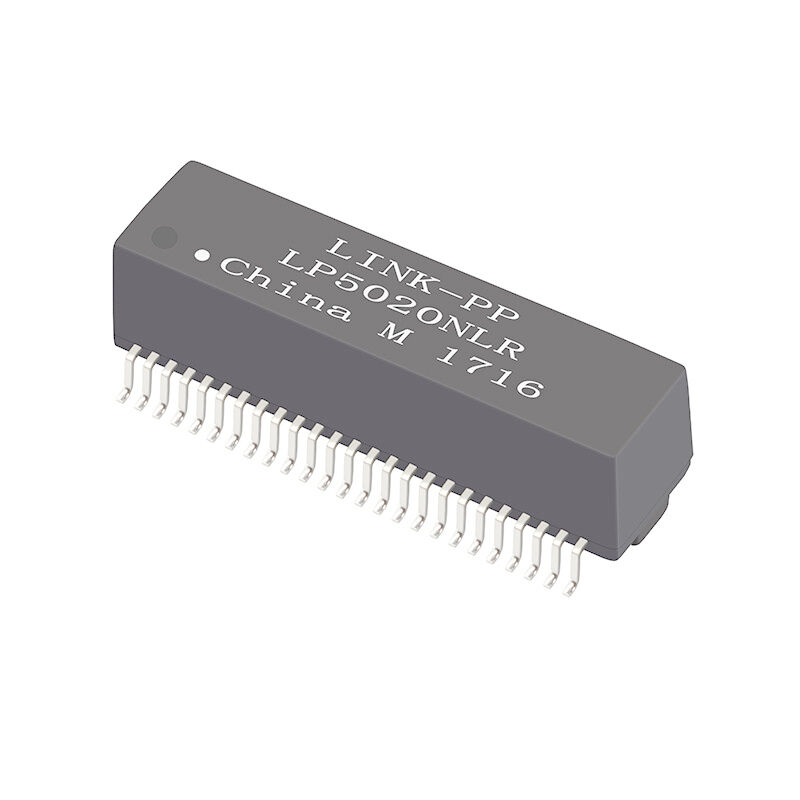

| Dual Port, 1000 BASE-T Ethernet Telecom Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | LP5020NLR |
| Speed | 1000BASE-T |
| Number of Ports | Dual |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | - 40 TO + 85 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | 0.340 |
| Package Height (mm) | 8.66 |
| Package Length (Inches) | 1.100 |
| Package Length (mm) | 27.94 |
| Package Width (Inches) | 0.430 |
| Package Width (mm) | 10.92 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
749020022A Equivalent Part / Cross Compatible Specification
Electrical Specifications @25℃
1.Insertion Loss:
1-100MHz:-1.2dB Max
2.Return Loss:
1-30MHz:-16dB Min
40MHz:-14dB Min
50MHz:-13dB Min
60-80MHz:-12dB Min
3.Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min
4.Differential to Common Mode Rejection:
30MHz:-43dB Min
60MHz:-37dB Min
100Mhz:-33dB Min
5.Isolation Voltage:1500Vrms
6.Operating Temperature: -40℃～+85℃.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with over 10 years experience in connector industrial.
Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.
Q: Do you provide samples? is it free or charged
A: Free samples are always available for testing or quality evaluation purpose.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
