Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG49-LVL1NXRL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Spec: |
LPB81114NLE |
Mounting: |
SMD |
Apllication: |
10/100Mbps Eth |
Samples: |
Free |
Project: |
Telecom Equipments |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Spec: |
LPB81114NLE |
Mounting: |
SMD |
Apllication: |
10/100Mbps Eth |
Samples: |
Free |
Project: |
Telecom Equipments |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

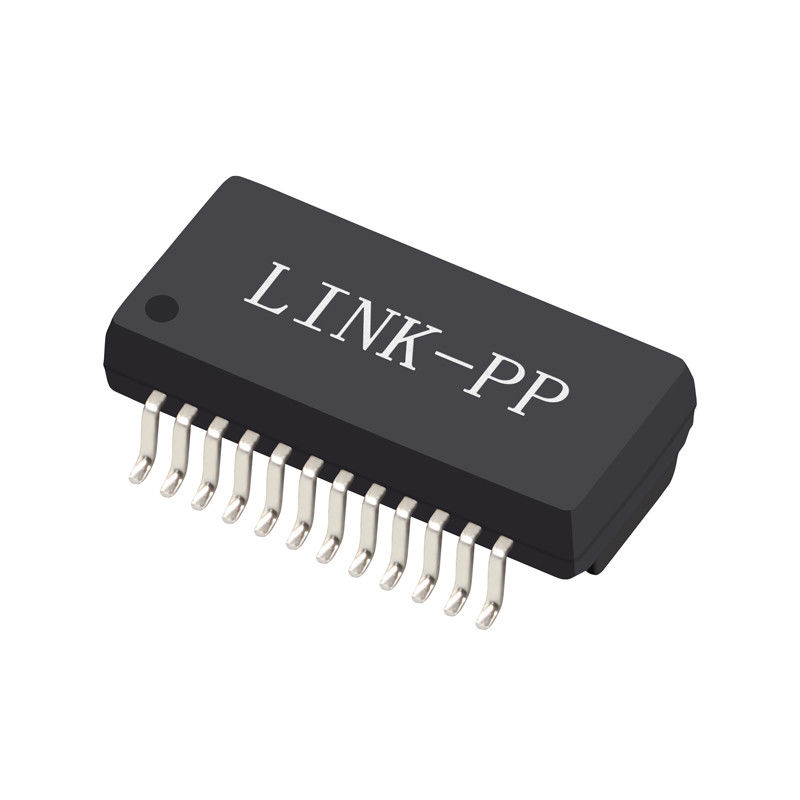

| TG49-LVL1NXRL Isolation T1/CEPT/TSDN-PRI Transformer LPB81114NLE | |
| LINK-PP Part Number | TG49-LVL1NXRL |
| Speed | 10/100 BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMT |
| Temperature | -40 TO 85 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Number of Ports | SINGLE |
| Package Height (Inches) | 0.260 |
| Package Height (mm) | 6.6 |
| Package Length (Inches) | 1.125 |
| Package Length (mm) | 28.58 |
| Package Width (Inches) | 0.630 |
| Package Width (mm) | 16.0 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
