Model Number: 84F-01NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2400PCS
Price: $0.05-$1.2
Packaging Details: Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Products Series: |
84F-01NL Dual Port Transformer |
LINK-PP P/N: |
LP5020NLR |
Frequency Range: |
1 MHz To 100 MHz |
Speed: |
1000Base-T |
Part Status: |
Active |
PIN Number: |
50 |
Products Series: |
84F-01NL Dual Port Transformer |
LINK-PP P/N: |
LP5020NLR |
Frequency Range: |
1 MHz To 100 MHz |
Speed: |
1000Base-T |
Part Status: |
Active |
PIN Number: |
50 |
1. Turns Ratio (±5%): 1CT:1CT
2. OCL (100KHz/0.1V@8mA): 350uH MIN @0℃～+70℃.
3. Insertion Loss (dB MAX):-1.0dB(1-100MHz)
4. Return Loss (dB MIN): -18dB(1-30MHz),-14.4dB(40MHz),-13.1dB(50MHz),
-12dB(60-80MHz), -10dB(100MHz).
5. Crosstalk(dB MIN): -40dB(30MHz),-35dB(60MHz), -30dB(100MHz)
6. Differential to Common Mode Rejection(dB MIN): -40dB(30MHz),-35dB(60MHz),-30dB(100MHz)
7. Isolation Voltage:1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
8. Operating Temperature: -20℃～+85℃
| Dual Port 1000 BASE-T Ethernet Transformer Modules | |

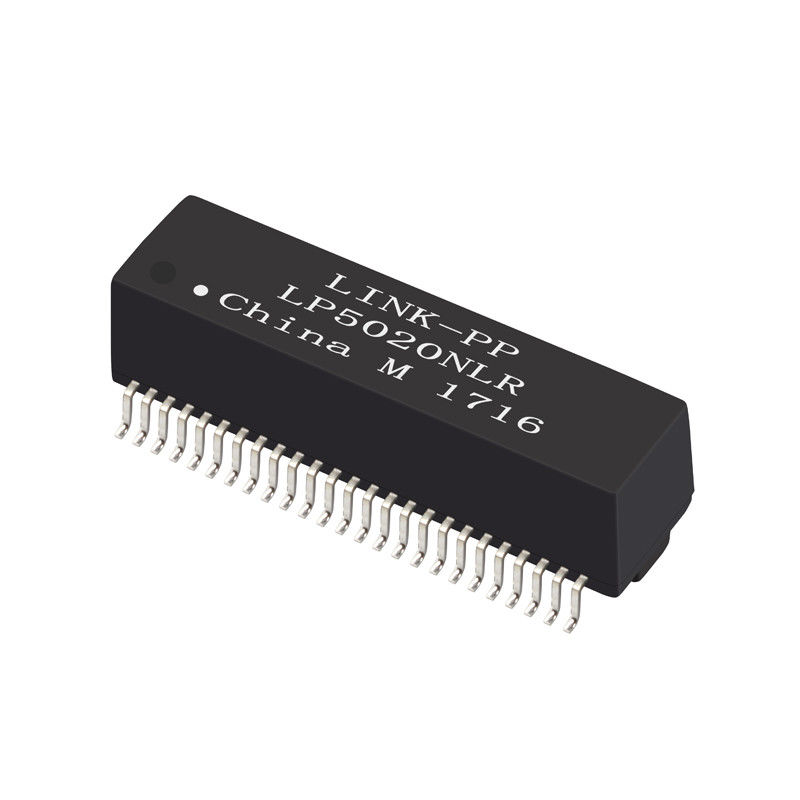

| LINK-PP Part Number | LP5020NLR |
| Speed | 1000BASE-T |
| Number of Ports | Dual |
| Application - LAN | ETHERNET (NON-PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| PIN Number | 50 |
| Configuration RX/RX | T, C, S |
| Mounting Type | Surface Mount |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | 0.340 |
| Package Height (mm) | 8.66 |
| Package Length (Inches) | 1.100 |
| Package Length (mm) | 27.94 |
| Package Width (Inches) | 0.430 |
| Package Width (mm) | 10.92 |
| Package | Tape & Reel |
| Turns Ratio RX/TX | 1CT:1CT |
| Packaging Weight | 2.22g per unit |
| Tape and Reel | 400 units per reel |
| Carton Unit | 6 reels (2,400 units) per carton |
| Total Weight | 10.0kg per carton |
