Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: UTG48C10
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.08-$1.2
Packaging Details: T&R
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Transformer Type: |
Dual Port Transformer |
Frequency Range: |
1 MHz To 100 MHz |
Application: |
10/100/1000Mbps |
Mounting: |
Surface Mount |
Isolation Voltage: |
1.5KV |
PoE Function: |
Support |
Transformer Type: |
Dual Port Transformer |
Frequency Range: |
1 MHz To 100 MHz |
Application: |
10/100/1000Mbps |
Mounting: |
Surface Mount |
Isolation Voltage: |
1.5KV |
PoE Function: |
Support |
| Compatible Part Number | UTG48C10 |

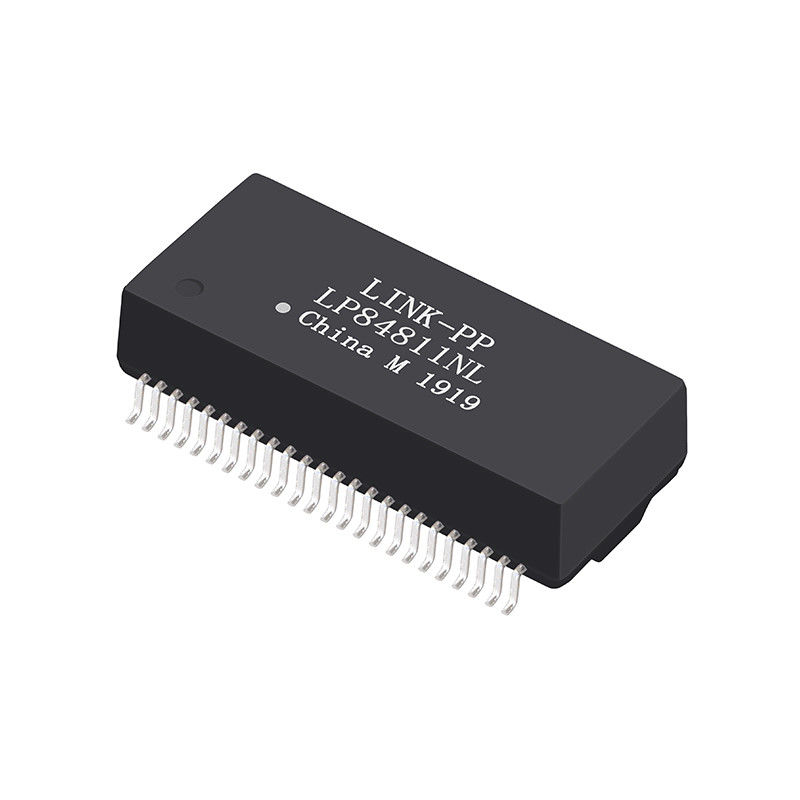

| LINK-PP Part Number | LP84811NL |
| Speed | 10/100/1000 Base-T |
| Number of Ports | Dual Port |
| PoE Rating | PoE |
| Package | SMD |
| Operating Temperature | 0℃ TO + 70℃ |
| AutomDX | YES |
| Application | I/0 Controller Guard System |
| Configuration RX | T, C, S |
| Configuration TX | T, C, S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| PIN Number | 48 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Insertion Loss | 1-100MHz:-1.2dB Max |
| Return Loss | 1-30MHz:-16dB Min 40MHz:-14dB Min 50MHz:-13dB Min 60-80MHz:-12dB Min |
| Crosstalk | 30MHz:-45dB Min 60MHz:-40dB Min 100MHz:-35dB Min |
| Differential to Common Mode Rejection | 30MHz:-43dB Min 60MHz:-37dB Min 100Mhz:-33dB Min |
| Isolation Voltage | 1500Vrms MIN |
