Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG2G-E12NZLF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
TG2G-E12NZLF |
Updated PN: |
LP72426ANL |
Speed: |
2.5G_bit |
Number Of Ports: |
Single |
Application: |
Lan Ethernet(PoE+) |
Package: |
SMD |
PIN Number: |
24 |
Temperature: |
0 To +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle：: |
More Than 20Years |
Specification: |
TG2G-E12NZLF |
Updated PN: |
LP72426ANL |
Speed: |
2.5G_bit |
Number Of Ports: |
Single |
Application: |
Lan Ethernet(PoE+) |
Package: |
SMD |
PIN Number: |
24 |
Temperature: |
0 To +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle：: |
More Than 20Years |
Detailed Information:

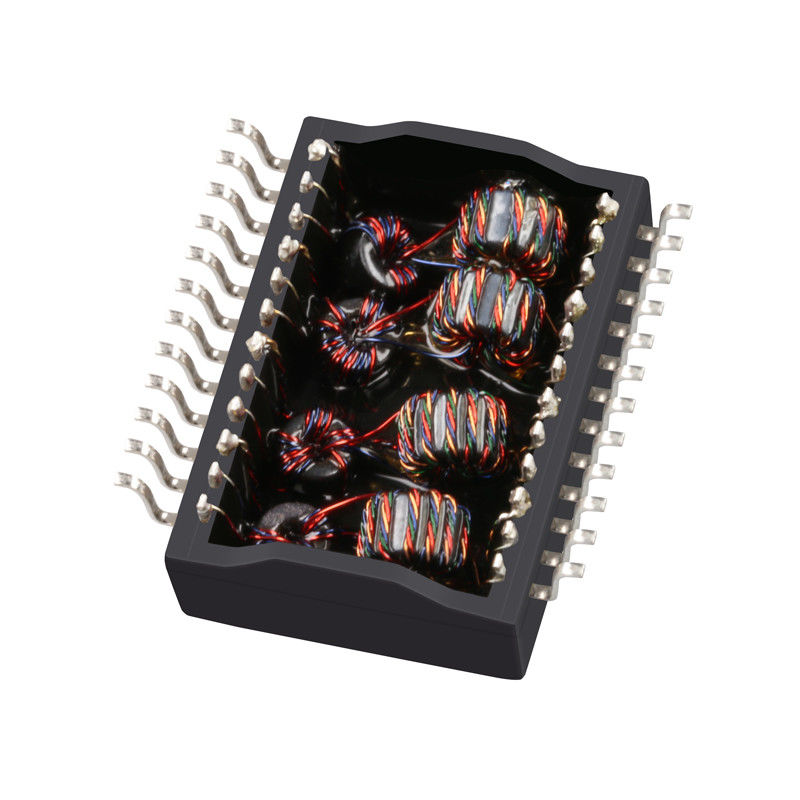

| TG2G-E12NZLF 2.5G 350mA 24Pin PoE+ Lan Transformer SMD | |
| LINK-PP Part Number | LP72426ANL |
| Speed | 2.5G BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE+) |
| Package | SMD |
| Temperature | 0 to +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | C,T |
| Configuration TX | C,T |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Number of Ports | SINGLE |
| Package Height (Inches) | 0.236 |
| Package Height (mm) | 6.00 |
| Package Length (Inches) | 0.715 |
| Package Length (mm) | 18.15 |
| Package Width (Inches) | 0.630 |
| Package Width (mm) | 16.00 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated
by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test
equipments imported from abroad. Established in 1997, we have around 2000 staff at present.
With the abundant productive capacity of 3000K per month, we are able to delivery the goods
within the short time.Moreover, we can provide the professional complete solution for magnetic
components and strong technical support as well. Our products are widely used in networking
and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP
Phone,xDSL modem.
Main Products
10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
T1/E1,T3/DS3/E3/STS-1 interface line transformer
ISDN,HDSL,ADSL and VDSL interface line transformer and splitter
